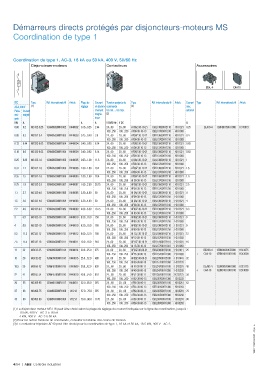

Démarreurs directs protégés par disjoncteurs-moteurs MS

Coordination de type 1

Coordination de type 1, AC-3, 16 kA ou 50 kA, 400 V, 50/60 Hz
Disjoncteurs-moteurs Contacteurs Accessoires

I >
BEA..-4 CA4-10

IEC Type Réf. internationale @ Article Plage de Courant Tension assignée de Type Réf. internationale @ Article Courant Type Réf. internationale @ Article
AC-3, 400 V (1) réglage de déclen- commande (3) max.
Puiss. Courant chement Uc min. ... Uc max. autorisé
assi- assigné magné- (2)
gnée tique
kW A A A V 50/60 Hz V DC A
0.06 0.2 MS132-0.25 1SAM350000R1002 H440002 0.16...0.25 2.44 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 0.25 BEA16-4 1SBN081306T1000 H313073
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
0.09 0.3 MS132-0.4 1SAM350000R1003 H440003 0.25...0.40 3.9 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 0.4
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
0.12 0.44 MS132-0.63 1SAM350000R1004 H440004 0.40...0.63 6.14 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 0.63
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
0.18 0.6 MS132-0.63 1SAM350000R1004 H440004 0.40...0.63 6.14 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 0.63
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
0.25 0.85 MS132-1.0 1SAM350000R1005 H440005 0.63...1.00 11.5 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 1
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
0.37 1.1 MS132-1.6 1SAM350000R1006 H440006 1.00...1.60 18.4 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 1.6
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
0.55 1.5 MS132-1.6 1SAM350000R1006 H440006 1.00...1.60 18.4 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 1.6
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
0.75 1.9 MS132-2.5 1SAM350000R1007 H440007 1.60...2.50 28.75 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 2.5
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
1.1 2.7 MS132-4.0 1SAM350000R1008 H440008 2.50...4.00 50 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 4
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
1.5 3.6 MS132-4.0 1SAM350000R1008 H440008 2.50...4.00 50 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 4
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
2.2 4.9 MS132-6.3 1SAM350000R1009 H440009 4.00...6.30 78.75 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 6.3
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
3 6.5 MS132-10 1SAM350000R1010 H440010 6.30...10.0 150 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 9
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
4 8.5 MS132-10 1SAM350000R1010 H440010 6.30...10.0 150 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 9
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
5.5 11.5 MS132-12 1SAM350000R1012 H440012 8.00...12.0 180 24...60 20...60 AF12Z-30-10-21 1SBL156001R2110 H311351 12
100...250 100...250 AF12-30-10-13 1SBL157001R1310 H311033
7.5 15.5 MS132-16 1SAM350000R1011 H440011 10.0...16.0 240 24...60 20...60 AF16Z-30-10-21 1SBL176001R2110 H311381 16
100...250 100...250 AF16-30-10-13 1SBL177001R1310 H311063
11 22 MS132-25 1SAM350000R1014 H440014 20.0...25.0 375 24...60 20...60 AF26Z-30-00-21 1SBL236001R2100 H311411 25 BEA38-4 1SBN082306T2000 H313075
100...250 100...250 AF26-30-00-13 1SBL237001R1300 H311093 + CA4-10 1SBN010110R1010 H313000
15 29 MS132-32 1SAM350000R1015 H440015 25.0...32.0 480 24...60 20...60 AF30Z-30-00-21 1SBL276001R2100 H311441 32
100...250 100...250 AF30-30-00-13 1SBL277001R1300 H311123
18.5 35 MS165-42 1SAM451000R1015 H448609 30.0...42.0 630 24…60 20…60 AF40-30-00-11 1SBL347001R1100 H313201 40 BEA65-4 1SBN083406R1000 H313115
100...250 100...250 AF40-30-00-13 1SBL347001R1300 H313203 + CA4-10 1SBN010110R1010 H313000
22 41 MS165-54 1SAM451000R1016 H448610 40.0...54.0 810 24…60 20…60 AF52-30-00-11 1SBL367001R1100 H313231 50
100...250 100...250 AF52-30-00-13 1SBL367001R1300 H313233
30 55 MS165-65 1SAM451000R1017 H448611 52.0...65.0 975 24…60 20…60 AF65-30-00-11 1SBL387001R1100 H313261 63
100...250 100...250 AF65-30-00-13 1SBL387001R1300 H313263
37 66 MS495-75 1SAM550000R1008 141213 57.0…75.0 975 24…60 20…60 AF80-30-00-11 1SBL397001R1100 H313291 75
100...250 100...250 AF80-30-00-13 1SBL397001R1300 H313293
45 80 MS495-90 1SAM550000R1009 141214 70.0…90.0 1170 24…60 20…60 AF80-30-00-11 1SBL397001R1100 H313291 80
100...250 100...250 AF80-30-00-13 1SBL397001R1300 H313293
(1) Le disjoncteur-moteur MS116 peut être choisi selon la plage de réglage du courant indiquée sur la ligne de coordination, jusqu'à :
- 15 kW, 400 V - AC-3 à 16 kA
- 4 kW, 400 V - AC-3 à 50 kA
(2) Pour les autres tensions de commande, consulter le tableau des codes de tension.
(3) Le contacteur tripolaire AF40 peut être choisi pour la coordination de type 1, 16 kA et 50 kA, 18.5 kW, 400 V - AC-3.
1SBC101913S0301 - Rev. A

4/54 | ABB Contrôle industriel
