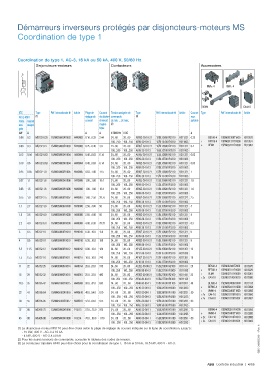

Démarreurs inverseurs protégés par disjoncteurs-moteurs MS

Coordination de type 1

Coordination de type 1, AC-3, 16 kA ou 50 kA, 400 V, 50/60 Hz
Disjoncteurs-moteurs Contacteurs Accessoires

+
I > BEA..-4 BER..-4

VEM4 CA4-10
IEC Type Réf. internationale @ Article Plage de Courant Tension assignée de Type Réf. internationale @ Article Courant Type Réf. internationale @ Article
AC-3, 400 V (1) réglage du de déclen- commande (3) max.
Puiss. Courant courant chement Uc min. ... Uc max. autorisé
assi- assigné magné- (2)
gnée tique
kW A A A V 50/60 Hz V DC A
0.06 0.2 MS132-0.25 1SAM350000R1002 H440002 0.16...0.25 2.44 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 0.25 BEA16-4 1SBN081306T1000 H313073
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003 + BER16-4 1SBN081311R1000 H313077
0.09 0.3 MS132-0.4 1SAM350000R1003 H440003 0.25...0.40 3.9 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 0.4 + VEM4 1SBN030111R1000 H313061
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
0.12 0.44 MS132-0.63 1SAM350000R1004 H440004 0.40...0.63 6.14 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 0.63
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
0.18 0.6 MS132-0.63 1SAM350000R1004 H440004 0.40...0.63 6.14 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 0.63
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
0.25 0.85 MS132-1.0 1SAM350000R1005 H440005 0.63...1.00 11.5 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 1
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
0.37 1.1 MS132-1.6 1SAM350000R1006 H440006 1.00...1.60 18.4 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 1.6
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
0.55 1.5 MS132-1.6 1SAM350000R1006 H440006 1.00...1.60 18.4 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 1.6
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
0.75 1.9 MS132-2.5 1SAM350000R1007 H440007 1.60...2.50 28.75 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 2.5
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
1.1 2.7 MS132-4.0 1SAM350000R1008 H440008 2.50...4.00 50 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 4
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
1.5 3.6 MS132-4.0 1SAM350000R1008 H440008 2.50...4.00 50 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 4
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
2.2 4.9 MS132-6.3 1SAM350000R1009 H440009 4.00...6.30 78.75 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 6.3
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
3 6.5 MS132-10 1SAM350000R1010 H440010 6.30...10.0 150 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 9
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
4 8.5 MS132-10 1SAM350000R1010 H440010 6.30...10.0 150 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 9
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
5.5 11.5 MS132-12 1SAM350000R1012 H440012 8.00...12.0 180 24...60 20...60 AF12Z-30-10-21 1SBL156001R2110 H311351 12
100...250 100...250 AF12-30-10-13 1SBL157001R1310 H311033
7.5 15.5 MS132-16 1SAM350000R1011 H440011 10.0...16.0 240 24...60 20...60 AF16Z-30-10-21 1SBL176001R2110 H311381 16
100...250 100...250 AF16-30-10-13 1SBL177001R1310 H311063
11 22 MS132-25 1SAM350000R1014 H440014 20.0...25.0 375 24...60 20...60 AF26Z-30-00-21 1SBL236001R2100 H311411 25 BEA38-4 1SBN082306T2000 H313075
100...250 100...250 AF26-30-00-13 1SBL237001R1300 H311093 + BER38-4 1SBN082311R1000 H313078
15 29 MS132-32 1SAM350000R1015 H440015 25.0...32.0 480 24...60 20...60 AF30Z-30-00-21 1SBL276001R2100 H311441 32 + VEM4 1SBN030111R1000 H313061
100...250 100...250 AF30-30-00-13 1SBL277001R1300 H311123 + 2x CA4-10 1SBN010110R1010 H313000
18.5 35 MS165-42 1SAM451000R1015 H448609 30.0...42.0 630 24…60 20…60 AF40-30-00-11 1SBL347001R1100 H313201 40 BEA65-4 1SBN083406R1000 H313115
100…250 100…250 AF40-30-00-13 1SBL347001R1300 H313203 + BER65-4 1SBN083411R1000 H313094
VM96-4
22 41 MS165-54 1SAM451000R1016 H448610 40.0...54.0 810 24…60 20…60 AF52-30-00-11 1SBL367001R1100 H313231 50 + + 2x CA4-10 1SBN033405T1000 H313093
1SBN010110R1010
H313000
100…250 100…250 AF52-30-00-13 1SBL367001R1300 H313233 + 2x CA4-01 1SBN010110R1001 H313002
30 55 MS165-65 1SAM451000R1017 H448611 52.0...65.0 975 24…60 20…60 AF65-30-00-11 1SBL387001R1100 H313261 63
100…250 100…250 AF65-30-00-13 1SBL387001R1300 H313263
37 66 MS495-75 1SAM550000R1008 141213 57.0…75.0 975 24…60 20…60 AF80-30-00-11 1SBL397001R1100 H313291 75 BER96-4 1SBN083911R1000 H313095
100…250 100…250 AF80-30-00-13 1SBL397001R1300 H313293 + VM96-4 1SBN033405T1000 H313093
45 80 MS495-90 1SAM550000R1009 141214 70.0…90.0 1170 24…60 20…60 AF80-30-00-11 1SBL397001R1100 H313291 80 + 2x CA4-10 1SBN010110R1010 H313000
100…250 100…250 AF80-30-00-13 1SBL397001R1300 H313293 + 2x CA4-01 1SBN010110R1001 H313002
(1) Le disjoncteur-moteur MS116 peut être choisi selon la plage de réglage du courant indiquée sur la ligne de coordination, jusqu'à :
- 15 kW, 400 V - AC-3 à 16 kA
- 4 kW, 400 V - AC-3 à 50 kA
(2) Pour les autres tensions de commande, consulter le tableau des codes de tension. 1SBC101915S0301 - Rev. A
(3) Le contacteur tripolaire AF40 peut être choisi pour la coordination de type 1, 16 kA et 50 kA, 18.5 kW, 400 V - AC-3.

ABB Contrôle industriel | 4/55
