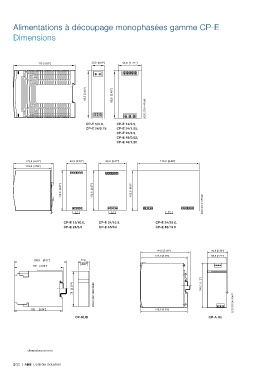

Alimentations à découpage monophasées gamme CP-E

Dimensions

115 [4.53“] 23,9 [0.94“] 43,5 [1.71”]

88,5 [3.48“] 88,5 [3.48”]

2CDC 272 014 F0b08

CP-E 5/3.0, CP-E 12/2.5,
CP-E 24/0.75 CP-E 24/1.25,
CP-E 24/2.5,
CP-E 48/0.62,
CP-E 48/1.25

123,6 [4.87“] 63,2 [2.49“] 83,0 [3.27“] 175,0 [6.89“]
116,6 [4.59“]

123,6 [4.87“] 123,6 [4.87“] 123,6 [4.87“]

2CDC 272 013 F0b08

CP-E 12/10.0, CP-E 24/10.0, CP-E 24/20.0,
CP-E 24/5.0 CP-E 48/5.0 CP-E 48/10.0

144,5 [5.69”] 60,0 [2.36”] 93,5 [3.68”] 144,5 [5.69”] 203,5 [8.01”] 60,0 [2.36”] 93,5 [3.68”] 203,5 [8.01”]
137,0 [5.39”] 56,5 [2.22”] 90,0 [3.54”] 137,0 [5.39”] 200,0 [7.87”] 56,5 [2.22”] 90,0 [3.54”] 200,0 [7.87”]
109,5 [4.31“] 22,5
[.886“]
102 [4.02“]

130,0 [5.12”] [3.07“] 130,0 [5.12”] 130,0 [5.12”] 130,0 [5.12”] 130,0 [5.12”] 130,0 [5.12”]

78 2CDC 252 188 F0b05

100
135,5 [5.33”] [3.94“] 135,5 [5.33”] 2CDC 272 015 F0b07 2CDC 272 015 F0b07
CP-RUD CP-A RU

dimensions en mm

2/32 | ABB Contrôle industriel
