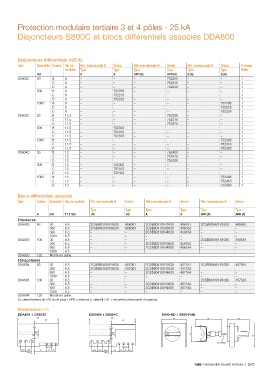

Page 139 - Catalogue Residentiel et petit Tertiaire

Protection modulaire tertiaire 3 et 4 pôles - 25 kA

Disjoncteurs S800C et blocs différentiels associés DDA800

Disjoncteurs différentiels (125 A)
Type Sensibilité Courbe Nb. de Réf. internationale @ Article Réf. internationale @ Article Réf. internationale @ Article Colisage
modules Type Type Type Type Type Type Boîte
mA A A APR (A) APR (A) S (A) S (A)
DS802C 30 B 8 – – – 752200 – – 1
C 8 – – – 752210 – – 1
D 8 – – – 752220 – – 1
300 B 8 – 752203 – – – – 1
C 8 – 752213 – – – – 1
D 8 – 752223 – – – – 1
1000 B 8 – – – – – 752208 1
C 8 – – – – – 752218 1
D 8 – – – – – 752228 1
DS803C 30 B 11.5 – – – 752300 – – 1
C 11.5 – – – 752310 – – 1
D 11.5 – – – 752320 – – 1
300 B 11.5 – 752303 – – – – 1
C 11.5 – 752313 – – – – 1
D 11.5 – 752323 – – – – 1
1000 B 11.5 – – – – – 752308 1
C 11.5 – – – – – 752318 1
D 11.5 – – – – – 752328 1
DS804C 30 B 13 – – – 752400 – – 1
C 13 – – – 752410 – – 1
D 13 – – – 752420 – – 1
300 B 13 – 752403 – – – – 1
C 13 – 752413 – – – – 1
D 13 – 752423 – – – – 1
1000 B 13 – – – – – 752408 1
C 13 – – – – – 752418 1
D 13 – – – – – 752428 1

Blocs différentiels associés
Type Calibre Sensibilité Nb. de modules Réf. internationale @ Article Réf. internationale @ Article Réf. internationale @ Article

Type Type Type Type Type Type
A mA 17.5 mm AC AC A A APR (A) APR (A)
Tripolaires
DDA803 63 30 6.5 2CSB803001R1630 456061 2CSB803101R1630 456161 2CSB803401R1630 456561
300 6.5 2CSB803001R3630 456063 2CSB803101R3630 456163 – –
500 6.5 – – 2CSB803101R4630 456164 – –
1000 6.5 – – – – – –
DDA803 100 30 6.5 – – – – 2CSB803401R1000 456581
300 6.5 – – 2CSB803101R3000 456183 – –
500 6.5 – – 2CSB803101R4000 456184 – –
1000 6.5 – – – – – –
DDA803 125 Monté en usine
Tétrapolaires
DDA804 63 30 6.5 2CSB804001R1630 457061 2CSB804101R1630 457161 2CSB804401R1630 457561
300 6.5 2CSB804001R3630 457063 2CSB804101R3630 457163 – –
500 6.5 – – 2CSB804101R4630 457164 – –
1000 6.5 – – – – – –
DDA804 100 30 6.5 – – – – 2CSB804401R1000 457581
300 6.5 – – 2CSB804101R3000 457183 – –
500 6.5 – – 2CSB804101R4000 457184 – –
1000 6.5 – – – – – –
DDA804 125 Monté en usine
S= sélectif (retard de 100 ms et plus) / APR = renforcé (≠ sélectif) / AE = sécurité positive (arrêt d'urgence)

Dimensions mm
DDA803 + DS803C DDA804 + DS804C S800-RD + S800-RHE
196 223 76 81 67
117 117

48
76
max. 500mm
26.5 26.5 61 22 22 26.5 26.5 26.5 39 22 22 22
13.5 13.5
ABB Résidentiel et petit tertiaire | 2/43
