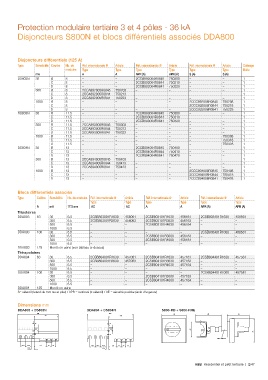

Page 143 - Catalogue Residentiel et petit Tertiaire

Protection modulaire tertiaire 3 et 4 pôles - 36 kA

Disjoncteurs S800N et blocs différentiels associés DDA800

Disjoncteurs différentiels (125 A)
Type Sensibilité Courbe Nb. de Réf. internationale @ Article Réf. internationale @ Article Réf. internationale @ Article Colisage
modules Type Type Type Type Type Type Boîte
mA A A APR (A) APR (A) S (A) S (A)
DS802N 30 B 8 – – 2CCB892004R0845 750200 – – 1
C 8 – – 2CCB892004R0844 750210 – – 1
D 8 – – 2CCB892004R0841 750220 – – 1
300 B 8 2CCA892005R0845 750203 – – – – 1
C 8 2CCA892005R0844 750213 – – – – 1
D 8 2CCA892005R0841 750223 – – – – 1
1000 B 8 – – – – 2CCC892006R0845 750208 1
C 8 – – – – 2CCC892006R0844 750218 1
D 8 – – – – 2CCC892006R0841 750228 1
DS803N 30 B 11.5 – – 2CCB893004R0845 750300 – – 1
C 11.5 – – 2CCB893004R0844 750310 – – 1
D 11.5 – – 2CCB893004R0841 750320 – – 1
300 B 11.5 2CCA893005R0845 750303 – – – – 1
C 11.5 2CCA893005R0844 750313 – – – – 1
D 11.5 2CCA893005R0841 750323 – – – – 1
1000 B 11.5 – – – – – 750308 1
C 11.5 – – – – – 750318 1
D 11.5 – – – – – 750328 1
DS804N 30 B 13 – – 2CCB894004R0845 750400 – – 1
C 13 – – 2CCB894004R0844 750410 – – 1
D 13 – – 2CCB894004R0841 750420 – – 1
300 B 13 2CCA894005R0845 750403 – – – – 1
C 13 2CCA894005R0844 750413 – – – – 1
D 13 2CCA894005R0841 750423 – – – – 1
1000 B 13 – – – – 2CCC894006R0845 750408 1
C 13 – – – – 2CCC894006R0844 750418 1
D 13 – – – – 2CCC894006R0841 750428 1

Blocs différentiels associés
Type Calibre Sensibilité Nb. de modules Réf. internationale @ Article Réf. internationale @ Article Réf. internationale @ Article
Type Type Type Type Type Type
A mA 17.5 mm AC AC A A APR (A) APR (A)
Tripolaires
DDA803 63 30 6.5 2CSB803001R1630 456061 2CSB803101R1630 456161 2CSB803401R1630 456561
300 6.5 2CSB803001R3630 456063 2CSB803101R3630 456163 – –
500 6.5 – – 2CSB803101R4630 456164 – –
1000 6.5 – – – – – –
DDA803 100 30 6.5 – – – – 2CSB803401R1000 456581
300 6.5 – – 2CSB803101R3000 456183 – –
500 6.5 – – 2CSB803101R4000 456184 – –
1000 6.5 – – – – – –
DDA803 125 Monté en usine (voir tableau ci-dessus)
Tétrapolaires
DDA804 63 30 6.5 2CSB804001R1630 457061 2CSB804101R1630 457161 2CSB804401R1630 457561
300 6.5 2CSB804001R3630 457063 2CSB804101R3630 457163 – –
500 6.5 – – 2CSB804101R4630 457164 – –
1000 6.5 – – – – – –
DDA804 100 30 6.5 – – – – 2CSB804401R1000 457581
300 6.5 – – 2CSB804101R3000 457183 – –
500 6.5 – – 2CSB804101R4000 457184 – –
1000 6.5 – – – – – –
DDA804 125 Monté en usine
S= sélectif (retard de 100 ms et plus) / APR = renforcé (≠ sélectif) / AE = sécurité positive (arrêt d'urgence)

Dimensions mm
DDA803 + DS803N DDA804 + DS804N S800-RD + S800-RHE
196 223 76 81 67
117 117

48
76
max. 500mm
26.5 26.5 61 22 22 26.5 26.5 26.5 39 22 22 22
13.5 13.5
