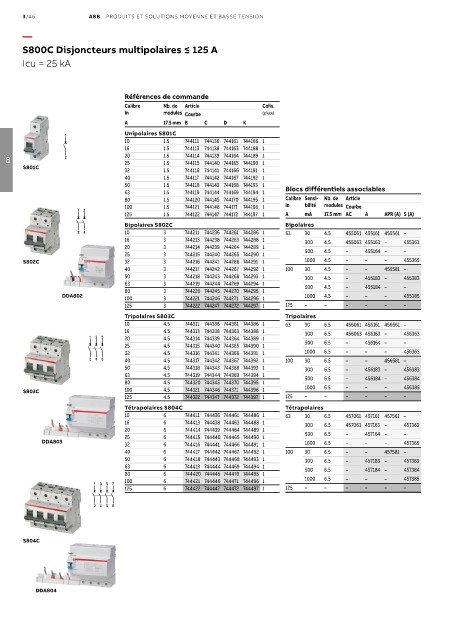

Page 244 - Les indispensables 2021

3/46 ABB PRODUITS ET SOLUTIONS MOYENNE ET BASSE TENSION

—
S800C Disjoncteurs multipolaires ≤ 125 A

Icu = 25 kA

Références de commande
Calibre Nb. de Article Colis.
In modules Courbe (pièce)
A 17.5 mm B C D K
Unipolaires S801C
10 1.5 744111 744136 744161 744186 1
16 1.5 744113 744138 744163 744188 1
20 1.5 744114 744139 744164 744189 1
25 1.5 744115 744140 744165 744190 1
03
S801C
32 1.5 744116 744141 744166 744191 1
40 1.5 744117 744142 744167 744192 1
50 1.5 744118 744143 744168 744193 1 Blocs différentiels associables
63 1.5 744119 744144 744169 744194 1
80 1.5 744120 744145 744170 744195 1 Calibre Sensi- Nb. de Article
100 1.5 744121 744146 744171 744196 1 In bilité modules Courbe
125 1.5 744122 744147 744172 744197 1 A mA 17.5 mm AC A APR (A) S (A)
Bipolaires S802C Bipolaires
10 3 744211 744236 744261 744286 1 63 30 4.5 455061 455161 455561 –
16 3 744213 744238 744263 744288 1 300 4.5 455063 455163 – 455363
20 3 744214 744239 744264 744289 1
25 3 744215 744240 744265 744290 1 500 4.5 – 455164 – –
S802C 32 3 744216 744241 744266 744291 1 1000 4.5 – – – 455365
40 3 744217 744242 744267 744292 1 100 30 4.5 – – 455581 –
50 3 744218 744243 744268 744293 1 300 4.5 – 455183 – 455383
63 3 744219 744244 744269 744294 1 500 4.5 – 455184 – –
80 3 744220 744245 744270 744295 1
DDA802 1000 4.5 – – – 455385
100 3 744221 744246 744271 744296 1
125 3 744222 744247 744272 744297 1 125 – – – – – –
Tripolaires S803C Tripolaires
10 4.5 744311 744336 744361 744386 1 63 30 6.5 456061 456161 456561 –
16 4.5 744313 744338 744363 744388 1 300 6.5 456063 456163 – 456363
20 4.5 744314 744339 744364 744389 1
25 4.5 744315 744340 744365 744390 1 500 6.5 – 456164 – –
32 4.5 744316 744341 744366 744391 1 1000 6.5 – – – 456365
40 4.5 744317 744342 744367 744392 1 100 30 6.5 – – 456581 –
50 4.5 744318 744343 744368 744393 1 300 6.5 – 456183 – 456383
63 4.5 744319 744344 744369 744394 1 500 6.5 – 456184 – 456384
80 4.5 744320 744345 744370 744395 1
S803C 100 4.5 744321 744346 744371 744396 1 1000 6.5 – – – 456385
125 4.5 744322 744347 744372 744397 1 125 – – – – – –
Tétrapolaires S804C Tétrapolaires
10 6 744411 744436 744461 744486 1 63 30 6.5 457061 457161 457561 –
16 6 744413 744438 744463 744488 1 300 6.5 457063 457163 – 457363
20 6 744414 744439 744464 744489 1
25 6 744415 744440 744465 744490 1 500 6.5 – 457164 – –
DDA803 1000 6.5 – – – 457365
32 6 744416 744441 744466 744491 1
40 6 744417 744442 744467 744492 1 100 30 6.5 – – 457581 –
50 6 744418 744443 744468 744493 1 300 6.5 – 457183 – 457383
63 6 744419 744444 744469 744494 1 500 6.5 – 457184 – 457384
80 6 744420 744445 744470 744495 1
100 6 744421 744446 744471 744496 1 1000 6.5 – – – 457385
125 6 744422 744447 744472 744497 1 125 – – – – – –

S804C

DDA804
