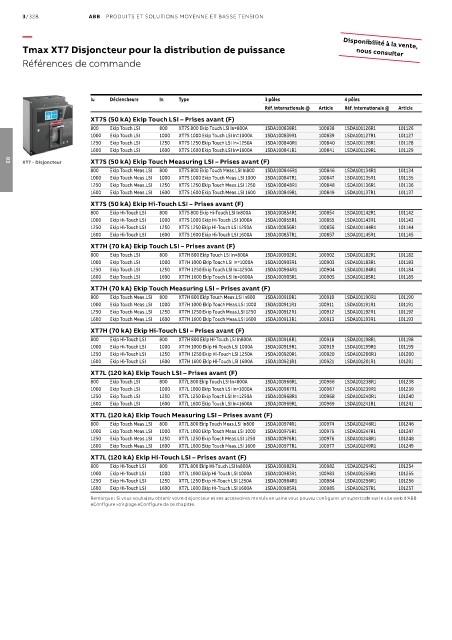

Page 526 - Les indispensables 2021

3/328 ABB PRODUITS ET SOLUTIONS MOYENNE ET BASSE TENSION

—
Tmax XT7 Disjoncteur pour la distribution de puissance Disponibilité à la vente,
nous consulter
Références de commande

Iu Déclencheurs In Type 3 pôles 4 pôles
Réf. internationale @ Article Réf. internationale @ Article
XT7S (50 kA) Ekip Touch LSI – Prises avant (F)
800 Ekip Touch LSI 800 XT7S 800 Ekip Touch LSI In=800A 1SDA100838R1 100838 1SDA101126R1 101126
1000 Ekip Touch LSI 1000 XT7S 1000 Ekip Touch LSI In=1000A 1SDA100839R1 100839 1SDA101127R1 101127
1250 Ekip Touch LSI 1250 XT7S 1250 Ekip Touch LSI In=1250A 1SDA100840R1 100840 1SDA101128R1 101128
1600 Ekip Touch LSI 1600 XT7S 1600 Ekip Touch LSI In=1600A 1SDA100841R1 100841 1SDA101129R1 101129
XT7 – Disjoncteur XT7S (50 kA) Ekip Touch Measuring LSI – Prises avant (F)
03
800 Ekip Touch Meas.LSI 800 XT7S 800 Ekip Touch Meas.LSI In800 1SDA100846R1 100846 1SDA101134R1 101134
1000 Ekip Touch Meas.LSI 1000 XT7S 1000 Ekip Touch Meas.LSI 1000 1SDA100847R1 100847 1SDA101135R1 101135
1250 Ekip Touch Meas.LSI 1250 XT7S 1250 Ekip Touch Meas.LSI 1250 1SDA100848R1 100848 1SDA101136R1 101136
1600 Ekip Touch Meas.LSI 1600 XT7S 1600 Ekip Touch Meas.LSI 1600 1SDA100849R1 100849 1SDA101137R1 101137
XT7S (50 kA) Ekip Hi-Touch LSI – Prises avant (F)
800 Ekip Hi-Touch LSI 800 XT7S 800 Ekip Hi-Touch LSI In800A 1SDA100854R1 100854 1SDA101142R1 101142
1000 Ekip Hi-Touch LSI 1000 XT7S 1000 Ekip Hi-Touch LSI 1000A 1SDA100855R1 100855 1SDA101143R1 101143
1250 Ekip Hi-Touch LSI 1250 XT7S 1250 Ekip Hi-Touch LSI 1250A 1SDA100856R1 100856 1SDA101144R1 101144
1600 Ekip Hi-Touch LSI 1600 XT7S 1600 Ekip Hi-Touch LSI 1600A 1SDA100857R1 100857 1SDA101145R1 101145
XT7H (70 kA) Ekip Touch LSI – Prises avant (F)
800 Ekip Touch LSI 800 XT7H 800 Ekip Touch LSI In=800A 1SDA100902R1 100902 1SDA101182R1 101182
1000 Ekip Touch LSI 1000 XT7H 1000 Ekip Touch LSI In=1000A 1SDA100903R1 100903 1SDA101183R1 101183
1250 Ekip Touch LSI 1250 XT7H 1250 Ekip Touch LSI In=1250A 1SDA100904R1 100904 1SDA101184R1 101184
1600 Ekip Touch LSI 1600 XT7H 1600 Ekip Touch LSI In=1600A 1SDA100905R1 100905 1SDA101185R1 101185
XT7H (70 kA) Ekip Touch Measuring LSI – Prises avant (F)
800 Ekip Touch Meas.LSI 800 XT7H 800 Ekip Touch Meas.LSI In800 1SDA100910R1 100910 1SDA101190R1 101190
1000 Ekip Touch Meas.LSI 1000 XT7H 1000 Ekip Touch Meas.LSI 1000 1SDA100911R1 100911 1SDA101191R1 101191
1250 Ekip Touch Meas.LSI 1250 XT7H 1250 Ekip Touch Meas.LSI 1250 1SDA100912R1 100912 1SDA101192R1 101192
1600 Ekip Touch Meas.LSI 1600 XT7H 1600 Ekip Touch Meas.LSI 1600 1SDA100913R1 100913 1SDA101193R1 101193
XT7H (70 kA) Ekip Hi-Touch LSI – Prises avant (F)
800 Ekip Hi-Touch LSI 800 XT7H 800 Ekip Hi-Touch LSI In800A 1SDA100918R1 100918 1SDA101198R1 101198
1000 Ekip Hi-Touch LSI 1000 XT7H 1000 Ekip Hi-Touch LSI 1000A 1SDA100919R1 100919 1SDA101199R1 101199
1250 Ekip Hi-Touch LSI 1250 XT7H 1250 Ekip Hi-Touch LSI 1250A 1SDA100920R1 100920 1SDA101200R1 101200
1600 Ekip Hi-Touch LSI 1600 XT7H 1600 Ekip Hi-Touch LSI 1600A 1SDA100921R1 100921 1SDA101201R1 101201
XT7L (120 kA) Ekip Touch LSI – Prises avant (F)
800 Ekip Touch LSI 800 XT7L 800 Ekip Touch LSI In=800A 1SDA100966R1 100966 1SDA101238R1 101238
1000 Ekip Touch LSI 1000 XT7L 1000 Ekip Touch LSI In=1000A 1SDA100967R1 100967 1SDA101239R1 101239
1250 Ekip Touch LSI 1250 XT7L 1250 Ekip Touch LSI In=1250A 1SDA100968R1 100968 1SDA101240R1 101240
1600 Ekip Touch LSI 1600 XT7L 1600 Ekip Touch LSI In=1600A 1SDA100969R1 100969 1SDA101241R1 101241
XT7L (120 kA) Ekip Touch Measuring LSI – Prises avant (F)
800 Ekip Touch Meas.LSI 800 XT7L 800 Ekip Touch Meas.LSI In800 1SDA100974R1 100974 1SDA101246R1 101246
1000 Ekip Touch Meas.LSI 1000 XT7L 1000 Ekip Touch Meas.LSI 1000 1SDA100975R1 100975 1SDA101247R1 101247
1250 Ekip Touch Meas.LSI 1250 XT7L 1250 Ekip Touch Meas.LSI 1250 1SDA100976R1 100976 1SDA101248R1 101248
1600 Ekip Touch Meas.LSI 1600 XT7L 1600 Ekip Touch Meas.LSI 1600 1SDA100977R1 100977 1SDA101249R1 101249
XT7L (120 kA) Ekip Hi-Touch LSI – Prises avant (F)
800 Ekip Hi-Touch LSI 800 XT7L 800 Ekip Hi-Touch LSI In800A 1SDA100982R1 100982 1SDA101254R1 101254
1000 Ekip Hi-Touch LSI 1000 XT7L 1000 Ekip Hi-Touch LSI 1000A 1SDA100983R1 100983 1SDA101255R1 101255
1250 Ekip Hi-Touch LSI 1250 XT7L 1250 Ekip Hi-Touch LSI 1250A 1SDA100984R1 100984 1SDA101256R1 101256
1600 Ekip Hi-Touch LSI 1600 XT7L 1600 Ekip Hi-Touch LSI 1600A 1SDA100985R1 100985 1SDA101257R1 101257
Remarque : Si vous souhaitez obtenir votre disjoncteur et ses accessoires montés en usine vous pouvez configurer un supercode sur le site web d'ABB
eConfigure voir page eConfigure de ce chapitre.
