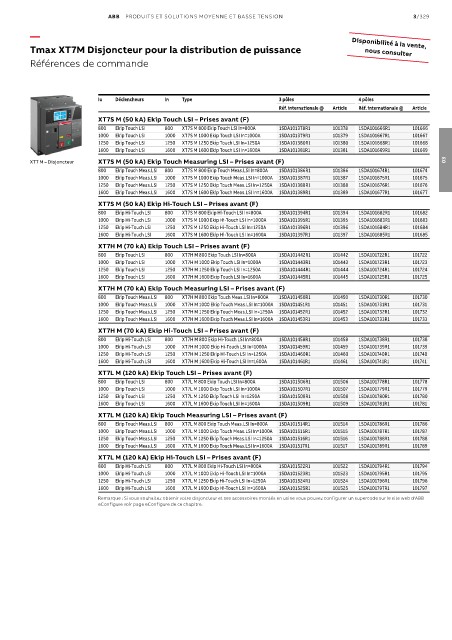

Page 527 - Les indispensables 2021

ABB PRODUITS ET SOLUTIONS MOYENNE ET BASSE TENSION 3/329

—
Tmax XT7M Disjoncteur pour la distribution de puissance Disponibilité à la vente,
nous consulter
Références de commande

Iu Déclencheurs In Type 3 pôles 4 pôles
Réf. internationale @ Article Réf. internationale @ Article
XT7S M (50 kA) Ekip Touch LSI – Prises avant (F)
800 Ekip Touch LSI 800 XT7S M 800 Ekip Touch LSI In=800A 1SDA101378R1 101378 1SDA101666R1 101666
1000 Ekip Touch LSI 1000 XT7S M 1000 Ekip Touch LSI In=1000A 1SDA101379R1 101379 1SDA101667R1 101667
1250 Ekip Touch LSI 1250 XT7S M 1250 Ekip Touch LSI In=1250A 1SDA101380R1 101380 1SDA101668R1 101668
1600 Ekip Touch LSI 1600 XT7S M 1600 Ekip Touch LSI In=1600A 1SDA101381R1 101381 1SDA101669R1 101669
XT7 M – Disjoncteur XT7S M (50 kA) Ekip Touch Measuring LSI – Prises avant (F) 03
800 Ekip Touch Meas.LSI 800 XT7S M 800 Ekip Touch Meas.LSI In=800A 1SDA101386R1 101386 1SDA101674R1 101674
1000 Ekip Touch Meas.LSI 1000 XT7S M 1000 Ekip Touch Meas.LSI In=1000A 1SDA101387R1 101387 1SDA101675R1 101675
1250 Ekip Touch Meas.LSI 1250 XT7S M 1250 Ekip Touch Meas.LSI In=1250A 1SDA101388R1 101388 1SDA101676R1 101676
1600 Ekip Touch Meas.LSI 1600 XT7S M 1600 Ekip Touch Meas.LSI In=1600A 1SDA101389R1 101389 1SDA101677R1 101677
XT7S M (50 kA) Ekip Hi-Touch LSI – Prises avant (F)
800 Ekip Hi-Touch LSI 800 XT7S M 800 Ekip Hi-Touch LSI In=800A 1SDA101394R1 101394 1SDA101682R1 101682
1000 Ekip Hi-Touch LSI 1000 XT7S M 1000 Ekip Hi-Touch LSI In=1000A 1SDA101395R1 101395 1SDA101683R1 101683
1250 Ekip Hi-Touch LSI 1250 XT7S M 1250 Ekip Hi-Touch LSI In=1250A 1SDA101396R1 101396 1SDA101684R1 101684
1600 Ekip Hi-Touch LSI 1600 XT7S M 1600 Ekip Hi-Touch LSI In=1600A 1SDA101397R1 101397 1SDA101685R1 101685
XT7H M (70 kA) Ekip Touch LSI – Prises avant (F)
800 Ekip Touch LSI 800 XT7H M 800 Ekip Touch LSI In=800A 1SDA101442R1 101442 1SDA101722R1 101722
1000 Ekip Touch LSI 1000 XT7H M 1000 Ekip Touch LSI In=1000A 1SDA101443R1 101443 1SDA101723R1 101723
1250 Ekip Touch LSI 1250 XT7H M 1250 Ekip Touch LSI In=1250A 1SDA101444R1 101444 1SDA101724R1 101724
1600 Ekip Touch LSI 1600 XT7H M 1600 Ekip Touch LSI In=1600A 1SDA101445R1 101445 1SDA101725R1 101725
XT7H M (70 kA) Ekip Touch Measuring LSI – Prises avant (F)
800 Ekip Touch Meas.LSI 800 XT7H M 800 Ekip Touch Meas.LSI In=800A 1SDA101450R1 101450 1SDA101730R1 101730
1000 Ekip Touch Meas.LSI 1000 XT7H M 1000 Ekip Touch Meas.LSI In=1000A 1SDA101451R1 101451 1SDA101731R1 101731
1250 Ekip Touch Meas.LSI 1250 XT7H M 1250 Ekip Touch Meas.LSI In=1250A 1SDA101452R1 101452 1SDA101732R1 101732
1600 Ekip Touch Meas.LSI 1600 XT7H M 1600 Ekip Touch Meas.LSI In=1600A 1SDA101453R1 101453 1SDA101733R1 101733
XT7H M (70 kA) Ekip Hi-Touch LSI – Prises avant (F)
800 Ekip Hi-Touch LSI 800 XT7H M 800 Ekip Hi-Touch LSI In=800A 1SDA101458R1 101458 1SDA101738R1 101738
1000 Ekip Hi-Touch LSI 1000 XT7H M 1000 Ekip Hi-Touch LSI In=1000A 1SDA101459R1 101459 1SDA101739R1 101739
1250 Ekip Hi-Touch LSI 1250 XT7H M 1250 Ekip Hi-Touch LSI In=1250A 1SDA101460R1 101460 1SDA101740R1 101740
1600 Ekip Hi-Touch LSI 1600 XT7H M 1600 Ekip Hi-Touch LSI In=1600A 1SDA101461R1 101461 1SDA101741R1 101741
XT7L M (120 kA) Ekip Touch LSI – Prises avant (F)
800 Ekip Touch LSI 800 XT7L M 800 Ekip Touch LSI In=800A 1SDA101506R1 101506 1SDA101778R1 101778
1000 Ekip Touch LSI 1000 XT7L M 1000 Ekip Touch LSI In=1000A 1SDA101507R1 101507 1SDA101779R1 101779
1250 Ekip Touch LSI 1250 XT7L M 1250 Ekip Touch LSI In=1250A 1SDA101508R1 101508 1SDA101780R1 101780
1600 Ekip Touch LSI 1600 XT7L M 1600 Ekip Touch LSI In=1600A 1SDA101509R1 101509 1SDA101781R1 101781
XT7L M (120 kA) Ekip Touch Measuring LSI – Prises avant (F)
800 Ekip Touch Meas.LSI 800 XT7L M 800 Ekip Touch Meas.LSI In=800A 1SDA101514R1 101514 1SDA101786R1 101786
1000 Ekip Touch Meas.LSI 1000 XT7L M 1000 Ekip Touch Meas.LSI In=1000A 1SDA101515R1 101515 1SDA101787R1 101787
1250 Ekip Touch Meas.LSI 1250 XT7L M 1250 Ekip Touch Meas.LSI In=1250A 1SDA101516R1 101516 1SDA101788R1 101788
1600 Ekip Touch Meas.LSI 1600 XT7L M 1600 Ekip Touch Meas.LSI In=1600A 1SDA101517R1 101517 1SDA101789R1 101789
XT7L M (120 kA) Ekip Hi-Touch LSI – Prises avant (F)
800 Ekip Hi-Touch LSI 800 XT7L M 800 Ekip Hi-Touch LSI In=800A 1SDA101522R1 101522 1SDA101794R1 101794
1000 Ekip Hi-Touch LSI 1000 XT7L M 1000 Ekip Hi-Touch LSI In=1000A 1SDA101523R1 101523 1SDA101795R1 101795
1250 Ekip Hi-Touch LSI 1250 XT7L M 1250 Ekip Hi-Touch LSI In=1250A 1SDA101524R1 101524 1SDA101796R1 101796
1600 Ekip Hi-Touch LSI 1600 XT7L M 1600 Ekip Hi-Touch LSI In=1600A 1SDA101525R1 101525 1SDA101797R1 101797
Remarque : Si vous souhaitez obtenir votre disjoncteur et ses accessoires montés en usine vous pouvez configurer un supercode sur le site web d'ABB
eConfigure voir page eConfigure de ce chapitre.
