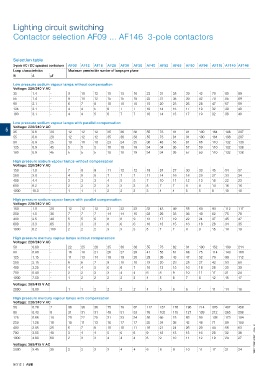

Lighting circuit switching

Contactor selection AF09 ... AF146 3-pole contactors

Selection table
3-pole AC / DC operated contactors AF09 AF12 AF16 AF26 AF30 AF38 AF40 AF52 AF65 AF80 AF96 AF116 AF140 AF146
Lamp characteristics Maximum permissible number of lamps per phase
W A μF

Low pressure sodium vapour lamps without compensation
Voltage: 220/240 V AC
35 1.4 - 9 10 12 15 15 16 23 31 35 39 42 70 85 89
55 1.4 - 9 10 12 15 15 16 23 31 35 39 42 70 85 89
90 2.1 - 6 7 8 10 10 10 15 20 23 26 28 47 57 59
135 3.1 - 4 4 5 6 7 7 10 14 15 17 19 32 38 40
180 3.1 - 4 4 5 6 7 7 10 14 15 17 19 32 38 40

Low pressure sodium vapour lamps with parallel compensation
5 Voltage: 220/240 V AC 20 12 12 12 35 36 38 55 73 81 91 100 164 198 207
35
0.6
55 0.6 20 12 12 12 35 36 38 55 73 81 91 100 164 198 207
90 0.9 25 10 10 10 23 24 25 36 48 55 61 66 110 132 138
135 0.9 45 5 5 5 18 18 19 34 34 36 57 59 110 132 138
180 0.9 45 5 5 5 18 18 19 34 34 36 57 59 110 132 138
High pressure sodium vapour lamps without compensation
Voltage: 220/240 V AC
150 1.8 - 7 8 9 11 12 12 18 24 27 30 33 45 54 57
250 3.0 - 4 5 5 7 7 7 11 14 16 18 20 27 33 34
400 4.4 - 3 3 3 4 5 5 7 10 11 12 13 18 22 23
600 6.2 - 2 2 2 3 3 3 5 7 7 8 9 13 16 16
1000 10.3 - 1 1 1 2 2 2 3 4 4 5 5 8 10 10

High pressure sodium vapour lamps with parallel compensation
Voltage: 220/240 V AC
150 1.0 20 12 12 12 21 22 23 33 43 49 55 60 93 112 117
250 1.5 36 7 7 7 14 14 15 22 29 33 36 40 62 75 78
400 2.5 48 5 5 5 8 8 9 13 17 19 22 24 37 45 47
600 3.3 65 3 3 3 6 6 6 10 13 15 16 18 28 34 35
1000 6.2 100 2 2 2 3 3 3 5 7 7 8 9 15 18 19
High pressure mercury vapour lamps without compensation
Voltage: 220/240 V AC
50 0.60 - 22 25 28 35 36 38 55 73 82 91 100 152 190 214
80 0.80 - 16 18 21 26 27 28 41 55 61 68 75 114 143 160
125 1.15 - 11 13 14 18 19 20 28 38 43 47 52 79 99 112
250 2.15 - 6 6 7 9 10 10 15 20 23 25 27 42 53 60
400 3.25 - 4 4 5 6 6 7 10 13 15 16 18 28 35 39
700 5.40 - 2 2 3 3 4 4 6 8 9 10 11 17 21 24
1000 7.50 - 1 2 2 2 2 3 4 5 6 7 8 12 15 17
Voltage: 380/415 V AC
2000 8.00 - 1 1 2 2 2 2 4 5 6 6 7 11 14 16
High pressure mercury vapour lamps with compensation
Voltage: 220/240 V AC
50 0.28 7 36 36 36 75 78 82 117 157 176 196 214 326 407 458
80 0.43 8 31 31 31 48 51 53 76 102 115 127 139 212 265 298
125 0.66 10 20 22 25 31 33 34 50 66 75 83 90 138 173 194
250 1.28 18 10 11 13 16 17 17 25 34 38 42 46 71 89 100
400 2.05 25 6 7 8 10 10 11 16 21 24 26 29 44 56 63
700 3.55 40 3 4 4 5 6 6 9 12 13 15 16 26 32 36
1000 4.83 60 2 3 3 4 4 4 6 9 10 11 12 19 24 27 1SBC101961S0201 - Rev. B
Voltage: 380/415 V AC
2000 5.45 35 2 2 3 3 4 4 6 8 9 10 11 17 21 24
