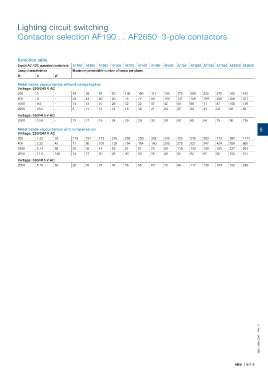

Lighting circuit switching

Contactor selection AF190 ... AF2650 3-pole contactors

Selection table
3-pole AC / DC operated contactors AF190 AF205 AF265 AF305 AF370 AF400 AF460 AF580 AF750 AF1250 AF1350 AF1650 AF2050 AF2650
Lamp characteristics Maximum permissible number of lamps per phase
W A μF

Metal halide vapour lamps without compensation
Voltage: 220/240 V AC
250 3 - 46 58 67 83 100 100 117 133 175 208 225 275 342 442
400 4 - 34 44 50 63 75 75 88 100 131 156 169 206 256 331
1000 9.5 - 14 18 21 26 32 32 37 42 55 66 71 87 108 139
2000 16.5 - 8 11 12 15 18 18 21 24 32 38 41 50 62 80
Voltage: 380/415 V AC
2000 10.5 - 13 17 19 24 29 29 33 38 50 60 64 79 98 126
Metal halide vapour lamps with compensation 5
Voltage: 220/240 V AC
250 1.32 33 119 151 173 216 259 259 302 345 453 540 583 713 885 1144
400 2.22 45 71 90 103 128 154 154 180 205 270 321 347 424 526 680
1000 5.14 85 30 39 44 55 67 67 78 89 116 139 150 183 227 294
2000 11.5 148 14 17 20 25 30 30 35 40 52 62 67 82 102 131
Voltage: 380/415 V AC
2000 6.10 60 26 33 37 47 56 56 65 75 98 117 126 154 192 248

1SBC101961S0201 - Rev. B

ABB | 5/315
