ABB MOTOR PROTECTION AND CONTROL 3/393

—

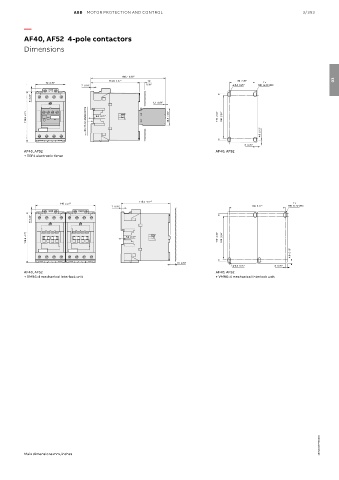

AF40, AF52 4-pole contactors
Dimensions

169.7 6.68"
113.5 4.47" 10 60 2.36" 03
70 2.76" 2 x
7 0.28" 0.39" ø 6.4 0.25" M6 ¼-20 UNC
6 0.24"
1.1 0.04"
35 x 15 mm EN/IEC 60715
119.5 4.70" 5.5 0.22"" 40.5 1.59" 110 4.33" 100 3.94"
0.22
5.5
4.6 0.18"

5 0.20"
AF40, AF52 AF40, AF52
+ TEF4 electronic timer

113.5 4.47"
140 5.51" 2 x
7 0.28" 130 5.12" M6 ¼-20 UNC
6 0.24"

119.5 4.70" 5 5.5 0.22"" 110 4.33" 100 3.94"
0.22
.5
4.6 0.18"

10 0.39"
ø 6.4 0.25" 5 0.20"
AF40, AF52 AF40, AF52
+ VM96-4 mechanical interlock unit + VM96-4 mechanical interlock unit

1SBC101977S0201 1SBC101977S0201

Main dimensions mm, inches
