ABB MOTOR PROTECTION AND CONTROL 3/395
—

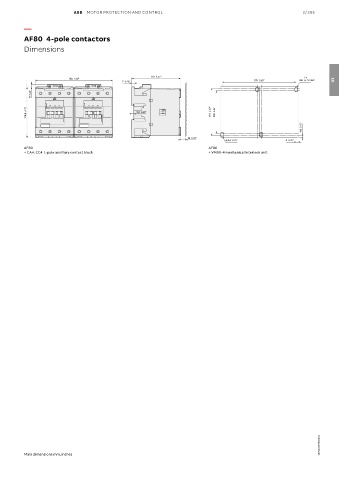

AF80 4-pole contactors
Dimensions
116 4.57" 2 x
180 7.09" M6 ¼-20 UNC 03
7 0.28" 170 6.69"
6 0.24"
119.5 4.70" 5.5 0.22" 110 4.33" 100 3.94"
4.6 0.18"
10 0.39"
ø 6.4 0.25" 5 0.20"
AF80 AF80
+ CA4, CC4 1-pole auxiliary contact block + VM96-4 mechanical interlock unit
1SBC101978S0201 1SBC101978S0201
Main dimensions mm, inches
