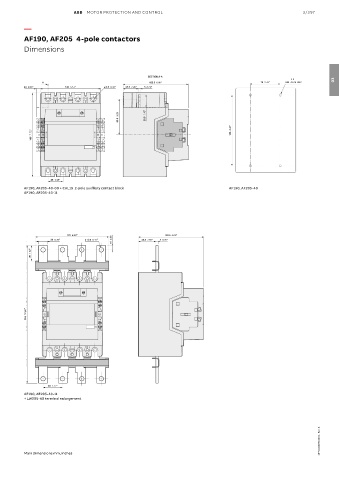

AF190, AF205 4-pole contactors
Dimensions

SECTION A-A
4 X 03
A 152.5 6.00" 70 2.76" M5 10-24 UNC
10 0.39" 140 5.51" ø 8.5 0.33" 35.5 1.40" 5 0.20"

83.5 3.29" 29.5 1.16"

196 7.72" 165 6.50"

35 1.38"
AF190, AF205-40-00 + CAL19 2-pole auxiliary contact block AF190, AF205-40
AF190, AF205-40-11

170 6.69" 152.5 6.00"
20 0.79" ø 10.5 0.41" 10 0.39" 40.5 1.59" 5 0.20"
36 1.42"

319 12.56"

45 1.77"
AF190, AF205-40-11
+ LW205-40 terminal enlargement

1SFC101229C0201 - Rev. A 1SFC101229C0201

Main dimensions mm, inches
