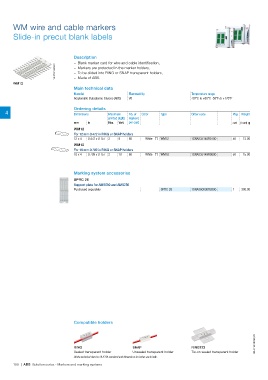

Page 102 - 1SNC160023C0204_Marking_systems_catalog_EN
P. 102
WM wire and cable markers
Slide-in precut blank labels
1SNC700182F0000 Description
–– Blank marker card for wire and cable identification,
–– Markers are protected in the marker holders,
–– To be slided into RING or SNAP transparent holders,
–– Made of ABS.
WM12 Main technical data Flammability Temperature range
V0 -50°C to +80°C -58°F to +176°F
4 Material
Acrylonitrile Butadienne Styrene (ABS)
Ordering details
Dimensions Maximum Nb. of Color Type Order code Pkg Weight
mm in printed digits markers card (1 card) g
per card WM12
Hor. Vert. WM18
WM12 White 1SNA235148R0700 50 12.00
For 12 mm 0.472 in RING or SNAP holders
12 x 4 0.472 x 0.157 2 8 60
WM18
For 18 mm 0.709 in RING or SNAP holders
18 x 4 0.709 x 0.157 2 10 60 White 1SNA235149R0000 50 15.00
Marking system accessories SPRC 26 1SNA360036R0300 1 300.00
SPRC 26
Support plate for AMS500 and AMS250
Purchased separately
Compatible holders
RING SNAP RINGT23 1SNC160120S0201
Sealed transparent holder Unsealed transparent holder Tie-on sealed transparent holder
All the technical data for UL/CSA standard and dimensions in inches are in italic.
100 | ABB Solution series - Markers and marking systems
