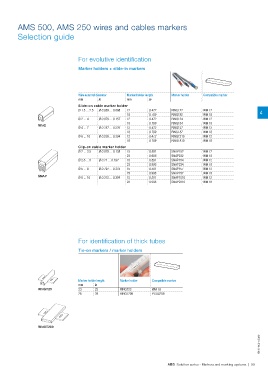

Page 101 - 1SNC160023C0204_Marking_systems_catalog_EN

AMS 500, AMS 250 wires and cables markers
Selection guide

For evolutive identification

Marker holders + slide-in markers

Wire external diameter Marker holder length Marker holder Compatible marker
mm in mm in
RING122 WM 12
Slide-on cable marker holder RING182 WM 18
RING124 WM 12
Ø 1.5 ... 2.5 Ø 0.059 ... 0.098 12 0.472 RING184 WM 18 4
0.709 RING127 WM 12
18 0.472 RING187 WM 18
0.709 RING1210 WM 12
Ø 2 ... 4 Ø 0.079 ... 0.157 12 0.472 RING1810 WM 18
0.709
RING 18 0.472 SNAP152 WM 12
SNAP 0.709 SNAP232 WM 18
Ø 4 ... 7 Ø 0.157 ... 0.276 12 SNAP154 WM 12
SNAP234 WM 18
18 SNAP157 WM 12
SNAP237 WM 18
Ø 6 ... 10 Ø 0.236 ... 0.394 12 SNAP1510 WM 12
SNAP2310 WM 18
18

Clip-on cable marker holder

Ø 2 ... 3.5 Ø 0.079 ... 0.138 15 0.591
0.906
23 0.591
0.906
Ø 2.8 ... 5 Ø 0.11 ... 0.197 15 0.591
0.906
23 0.591
0.906
Ø 5 ... 8 Ø 0.197 ... 0.315 15

23

Ø 8 ... 10 Ø 0.315 ... 0.394 15

23

For identification of thick tubes

Tie-on markers / marker holders

RINGT23 Marker holder length Marker holder Compatible marker
mm in
23 23 RINGT23 WM 18
28 28 RINGT209 PCGS209

RINGT209

1SNC160217S0201

ABB Solution series - Markers and marking systems | 99
