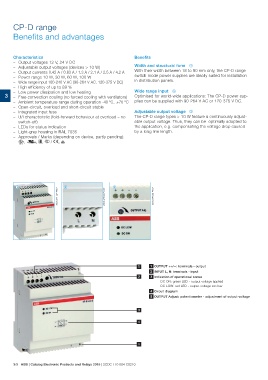

Page 208 - EPR Catalog 2015

CP-D range
Benefits and advantages

Characteristics Benefits

– Output voltages 12 V, 24 V DC Width and structural form 1
– Adjustable output voltages (devices > 10 W) With their width between 18 to 90 mm only, the CP-D range
– Output currents 0.42 A / 0.83 A / 1.3 A / 2.1 A / 2.5 A / 4.2 A switch mode power supplies are ideally suited for installation
– Power range 10 W, 30 W, 60 W, 100 W in distribution panels.
– Wide range input 100-240 V AC (90-264 V AC, 120-375 V DC)

– High efficiency of up to 89 %

– Low power dissipation and low heating Wide range input 2

3 – Free convection cooling (no forced cooling with ventilators) Optimised for world-wide applications: The CP-D power sup-

– Ambient temperature range during operation -40 °C...+70 °C plies can be supplied with 90-264 V AC or 120-375 V DC.

– Open-circuit, overload and short-circuit stable

– Integrated input fuse Adjustable output voltage 3

– U/I characteristic (fold-forward behaviour at overload – no The CP-D range types > 10 W feature a continuously adjust-

switch-off) able output voltage. Thus, they can be optimally adapted to

– LEDs for status indication the application, e.g. compensating the voltage drop caused

– Light-grey housing in RAL 7035 by a long line length.

– Approvals / Marks (depending on device, partly pending):

A, H, R, E / a, b

12 3
2CDC 271 027 F0007
2CDC 276 033 F0007
2CDC 276 032 F0007

1 1 OUTPUT ++/--: terminals - output

2 INPUT L, N: terminals - input
2 3 Indication of operational states

DC ON: green LED - output voltage applied
DC LOW: red LED - output voltage too low
4 Circuit diagram
5 OUTPUT Adjust: potentiometer - adjustment of output voltage

3

4

5
