6                MAIN CATALOG PLC AUTOMATION



          —

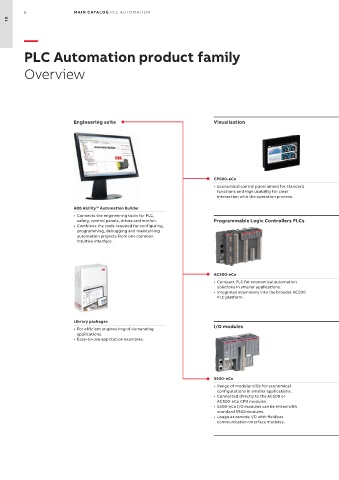

          PLC Automation product family


          Connectivity









                                                                                        IT network / internet
  01                                                                                    •  OPC UA
                                                                                        •  HTML(S)
                                          ABB Ability™      Customer / OEM cloud        •  FTP(S)
                                                                                        •  SNTP



                                                                                        Factory/site network
                                                                                        •  OPC DA/AE
                                                                                        •  OPC UA
                                                                                        •  UDP
             MES/ERP            HMI                       CP600           Data base     •  TCP/IP
                                                                                        •  BACnet
                                                                                        •  MySQL / MSSQL
                                                                                        •  HTML(S)
                                                                                        •  FTP(S)
                                                                                        •  SNTP
                                            AC500                        AC500-eCo      •  SNMP


                                                                                        Control network
                                                                                        •  PROFINET
                                                                                        •  EtherCAT
                                                                                        •  Modbus TCP
                                                                                        •  Modbus RTU
                                                                                        •  Profibus DP
                                                                                        •  IEC 60870-5-104
                                                                                        •  IEC 61850







                           Protocol                   Application example
                           OPC UA                     SCADA and cloud connectivity: Give access to selected AC500 variables and objects
                           HTTP(S)                    Publish HTML5 websites for monitoring and control
                           HTTP Request               Request information like temperature, humidity etc. from devices with web server
                                                      functionality
                           Connector to SQL Database  Save to or get data from MSSQL or MySQL databases
                           SNMP Agent                 Send traps (up to 4096 process alarms per PLC) to a SNMP management tool
                           SNMP Manager               Act as a SNMP Manager with Set and Get commands
                           BACnet                     Give access to selected AC500 variables and objects
                           UDP and TCP/IP             Implement specific and efficient own communications
                           FTP(S)                     Server and client for secure and efficient exchange of big data
