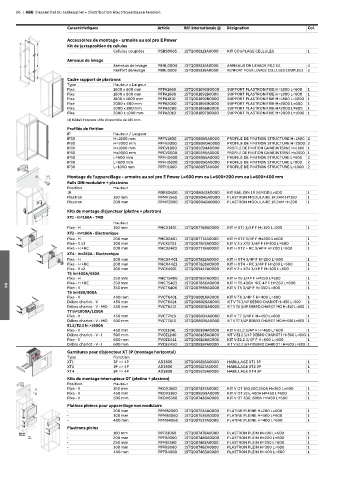

26 | ABB L'essentiel du tableautier – Distribution électrique basse tension

Caractéristiques Article Réf. internationale @ Désignation Col.
Accessoires de montage - armoire au sol pro E Power
Kit de juxtaposition de cellules
Cellules couplées PSBS0065 1STQ008113A0000 KIT COUPLAGE CELLULES 1
Anneaux de levage
Anneaux de levage PEBL0004 1STQ008112A0000 ANNEAUX DE LEVAGE M12 X4 4
Renfort de levage PBRL0002 1STQ008116A0000 RENFORT POUR LEVAGE CELLULES COUPLEES 2
Cadre support de plastrons
Type Hauteur x Largeur
Fixe 1800 x 600 mm PFPA1860 1STQ001890B0000 SUPPORT PLASTRON FIXE H=1800 L=600 1
Fixe 1800 x 800 mm PFPA1880 1STQ001891B0000 SUPPORT PLASTRON FIXE H=1800 L=800 1
Fixe 1800 x 1000 mm PFPA1810 1STQ001892B0000 SUPPORT PLASTRON FIXE H=1800 L=1000 1
Fixe 2000 x 600 mm PFPA2060 1STQ001895B0000 SUPPORT PLASTRON FIXE H=2000 L=600 1
Fixe 2000 x 800 mm PFPA2080 1STQ001896B0000 SUPPORT PLASTRON FIXE H=2000 L=800 1
Fixe 2000 x 1000 mm PFPA2010 1STQ001897B0000 SUPPORT PLASTRON FIXE H=2000 L=1000 1
(1) Réduit l'espace utile disponible de 100 mm
Profilés de finition
IP Hauteur / Largeur
IP30 H=1800 mm PPFV1800 1STQ008059A0000 PROFILE DE FINITION STRUCTURE H=1800 2
IP30 H=2000 mm PPFV2000 1STQ008060A0000 PROFILE DE FINITION STRUCTURE H=2000 2
IP30 H=1800 mm PPCV1800 1STQ009294A0000 PROFILE DE FINITION GAINE INTERNE H=1800 1
IP30 H=2000 mm PPCV2000 1STQ009295A0000 PROFILE DE FINITION GAINE INTERNE H=2000 1
IP30 L=600 mm PPFH0600 1STQ008055A0000 PROFILE DE FINITION STRUCTURE L=600 2
IP30 L=800 mm PPFH0800 1STQ008056A0000 PROFILE DE FINITION STRUCTURE L=800 2
IP30 L=1000 mm PPFH1000 1STQ008057A0000 PROFILE DE FINITION STRUCTURE L=1000 2
1/4 Montage de l'appareillage - armoire au sol pro E Power L=600 mm ou L=600+200 mm ou L=600+400 mm
Rails DIN modulaire + plastrons
Position Hauteur
1R PDRS0600 1STQ008042A0000 KIT RAIL DIN 1R 24MOD L=600 1
Plastron 150 mm PPMF1560 1STQ008045A0000 PLASTRON MODULAIRE 1R 24M H=150 1
Plastron 200 mm PPMF2060 1STQ008048A0000 PLASTRON MODULAIRE 1R 24M H=200 1
Kits de montage disjoncteur (platine + plastron)
A XT1 - In=160A - TMD
Hauteur
Fixe - H 150 mm PHCX1401 1STQ007758A0000 KIT H XT1 3/4P F H=150 L=600 1
XT2 - In=160A - Electronique
Fixe - H 200 mm PHCX2401 1STQ007774A0000 KIT H XT2 3/4P F H=200 L=600 1
Fixe - V x3 300 mm PVCX2701 1STQ007923A0000 KIT V 3 x XT2 3/4P F H=300 L=600 1
Fixe - H +RC 200 mm PHCX2423 1STQ007778A0000 KIT H XT2 + RC 3/4P F H=200 L=600 1
XT4 - In=250A - Electronique
Fixe - H 200 mm PHCX4401 1STQ007822A0000 KIT H XT4 3/4P F H=200 L=600 1
Fixe - H +RC 200 mm PHCX4423 1STQ007826A0000 KIT H XT4 + RC 3/4P F H=200 L=600 1
Fixe - V x2 300 mm PVCX4601 1STQ009142A0000 KIT V 2 x XT4 3/4P F H=300 L=600 1
T5 In=400A/630A
Fixe - H 250 mm PHCT5406 1STQ007857A0000 KIT H T5 3/4P F H=250 L=600 1
Fixe - H +RC 250 mm PHCT5423 1STQ007866A0000 KIT H T5 400A +RC 4P F H=250 L=600 1
Fixe - V 350 mm PVCT5406 1STQ007989A0000 KIT V T5 3/4P F H=350 L=600 1
04
T6 In=630/800A
Fixe - V 400 mm PVCT6401 1STQ008016A0000 KIT V T6 3/4P F H=400 L=600 1
Débro chariot - V 450 mm PVCT6414 1STQ008026A0000 KIT V T6 3/4P DEBRO CHARIOT H=450 L=600 1
Débro chariot - V - MO 450 mm PVCT6412 1STQ008028A0000 KIT V T6 3/4P DEBRO CHARIOT MO H=450 L=600 1
T7 In=1000A/1250A
Fixe - V 450 mm PVCT7419 1STQ008034A0000 KIT V T7 3/4P F H=450 L=600 1
Débro chariot - V - MO 500 mm PVCT7413 1STQ008035A0000 KIT V T7 3/4P DEBRO CHARIOT MO H=500 L=600 1
E1.2/E2.2 In >1600A
Fixe - V 450 mm PVCE1241 1STQ008184A0000 KIT V E1.2 3/4P F H=450 L=600 1
Débro chariot - V - I 500 mm PVCE1240 1STQ008185A0000 KIT V E1.2 3/4P DEBRO CHARIOT I H=500 L=600 1
Fixe - V 600 mm PVCE2441 1STQ008186A0000 KIT V E2.2 3/4P F H=600 L=600 1
Débro chariot - V - I 600 mm PVCE2450 1STQ008187A0000 KIT V E2.2 3/4P DEBRO CHARIOT I H=600 L=600 1
Garnitures pour disjoncteur XT 3P (montage horizontal)
Type Fonction
XT1 3P => 4P AD3305 1STQ009216A0000 HABILLAGE XT1 3P 1
XT2 3P => 4P AD3306 1STQ009217A0000 HABILLAGE XT2 3P 1
XT4 3P => 4P AD3308 1STQ009219A0000 HABILLAGE XT4 3P 1
Kits de montage interrupteur OT (platine + plastron)
Position Hauteur
Fixe - V 350 mm PKOV1660 1STQ007437A0000 KIT V OT 160,200,250A H=350 L=600 1
1/4
Fixe - V 450 mm PKOV3160 1STQ008399A0000 KIT V OT 315, 400A H=450 L=600 1
Fixe - V 500 mm PKOV6360 1STQ007438A0000 KIT V OT 630, 800A H=450 L=600 1
Platines pleines pour appareillage non modulaire
- 200 mm PPMB2060 1STQ007534A0000 PLATINE PLEINE H=200 L=600 1
- 300 mm PPMB3060 1STQ007536A0000 PLATINE PLEINE H=300 L=600 1
- 400 mm PPMB4060 1STQ007537A0000 PLATINE PLEINE H=400 L=600 1
Plastrons pleins
PUKI1800 - 100 mm PPFB1060 1STQ007478A0000 PLASTRON PLEIN H=100 L=600 1
PUKI2000
PFPF.... - 200 mm PPFB2060 1STQ007480A0000 PLASTRON PLEIN H=200 L=600 1
PFPS....
- 250 mm PPFB2560 1STQ007481A0000 PLASTRON PLEIN H=250 L=600 1
- 300 mm PPFB3060 1STQ007482A0000 PLASTRON PLEIN H=300 L=600 1
- 400 mm PPFB4060 1STQ007483A0000 PLASTRON PLEIN H=400 L=600 1
