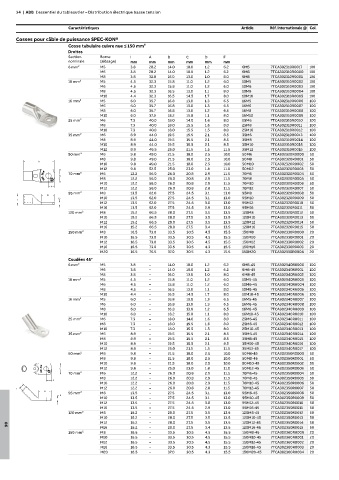

Caractéristiques Article Réf. internationale @ Col.
Cosses pour câble de puissance SPEC-KON®
Cosse tubulaire cuivre nue ≤ 150 mm²
Droites
Section Borne l A B C D F
nominale (alésage) mm mm mm mm mm mm
6 mm² M5 3.8 28.2 14.0 10.0 1.2 6.2 6M5 7TCA302310R0017 100
M6 3.8 28.2 14.0 10.8 1.2 6.2 6M6 7TCA302310R0000 100
M8 3.8 32.0 16.0 13.0 1.0 8.0 6M8 7TCA302310R0001 100
10 mm² M5 4.5 32.3 15.8 11.0 1.2 6.0 10M5 7TCA302310R0002 100
M6 4.5 32.3 15.8 11.0 1.2 6.0 10M6 7TCA302310R0003 100
M8 4.5 32.3 16.5 13.0 1.1 8.0 10M8 7TCA302310R0004 100
M10 4.4 32.3 16.5 14.5 1.7 8.0 10M10 7TCA302310R0005 100
16 mm² M5 6.0 35.7 16.8 13.0 1.3 6.5 16M5 7TCA302310R0006 100
M6 6.0 35.7 16.8 13.0 1.3 6.5 16M6 7TCA302310R0007 100
M8 6.0 35.7 16.8 13.0 1.2 6.5 16M8 7TCA302310R0008 100
M10 6.0 37.9 18.2 15.0 1.1 8.0 16M10 7TCA302310R0009 100
25 mm² M6 7.3 40.0 18.0 14.0 1.6 8.0 25M6 7TCA302310R0010 100
M8 7.3 40.0 18.0 15.5 1.6 8.0 25M8 7TCA302310R0011 100
M10 7.3 40.0 18.0 15.5 1.5 8.0 25M10 7TCA302310R0012 100
35 mm² M6 8.9 44.0 19.5 15.5 2.1 8.5 35M6 7TCA302310R0013 100
M8 8.9 44.0 19.5 15.5 2.1 8.5 35M8 7TCA302310R0014 100
M10 8.9 44.0 19.5 15.5 2.1 8.5 35M10 7TCA302310R0015 100
M12 8.9 49.5 25.0 21.5 1.5 11.5 35M12 7TCA302310R0016 100
50 mm² M6 9.8 49.0 21.5 18.0 2.5 10.0 50M6 7TCA302320R0000 50
M8 9.8 49.0 21.5 18.0 2.5 10.0 50M8 7TCA302320R0001 50
A
M10 9.8 49.0 21.5 18.0 2.5 10.0 50M10 7TCA302320R0002 50
M12 9.8 52.5 25.0 23.0 1.8 11.0 50M12 7TCA302320R0003 50
70 mm² M6 12.2 56.0 26.0 20.8 2.9 11.5 70M6 7TCA302320R0004 50
C
M8 12.2 56.0 26.0 20.8 2.9 11.5 70M8 7TCA302320R0005 50
M10 12.2 56.0 26.0 20.8 2.9 11.5 70M10 7TCA302320R0006 50
F
M12 12.2 56.0 26.0 20.8 2.8 11.5 70M12 7TCA302320R0007 50
95 mm² M8 13.5 62.0 27.5 24.5 3.1 13.0 95M8 7TCA302320R0008 50
B
D M10 13.5 62.0 27.5 24.5 3.1 13.0 95M10 7TCA302320R0009 50
I
M12 13.5 62.0 27.5 24.5 3.0 13.0 95M12 7TCA302320R0010 50
M16 13.5 62.0 27.5 24.5 2.9 13.0 95M16 7TCA302320R0011 50
120 mm² M8 15.2 66.5 28.0 27.5 3.5 13.5 120M8 7TCA302320R0012 50
M10 15.2 66.5 28.0 27.5 3.5 13.5 120M10 7TCA302320R0013 50
M12 15.2 66.5 28.0 27.5 3.5 13.5 120M12 7TCA302320R0014 50
M16 15.2 66.5 28.0 27.5 3.4 13.5 120M16 7TCA302320R0015 50
150 mm² M8 16.5 73.0 33.5 30.5 4.5 15.5 150M8 7TCA302330R0000 20
M10 16.5 73.0 33.5 30.5 4.5 15.5 150M10 7TCA302330R0001 20
M12 16.5 73.0 33.5 30.5 4.5 15.5 150M12 7TCA302330R0002 20
M16 16.5 73.0 33.5 30.5 4.3 15.5 150M16 7TCA302330R0003 20
M20 16.5 76.5 37.0 30.5 4.3 15.5 150M20 7TCA302330R0004 20
Coudées 45°
6 mm² M5 3.8 – 14.0 10.0 1.2 6.2 6M5-45 7TCA302340R0000 100
M6 3.8 – 14.0 10.8 1.2 6.2 6M6-45 7TCA302340R0001 100
M8 3.8 – 16.0 13.0 1.0 8.0 6M8-45 7TCA302340R0002 100
10 mm² M5 4.5 – 15.8 11.0 1.2 6.0 10M5-45 7TCA302340R0003 100
M6 4.5 – 15.8 11.0 1.2 6.0 10M6-45 7TCA302340R0004 100
M8 4.5 – 16.5 13.0 1.1 8.0 10M8-45 7TCA302340R0005 100
M10 4.4 – 16.5 14.5 1.7 8.0 10M10-45 7TCA302340R0006 100
16 mm² M5 6.0 – 16.8 13.0 1.3 6.5 16M5-45 7TCA302340R0007 100
M6 6.0 – 16.8 13.0 1.3 6.5 16M6-45 7TCA302340R0008 100
M8 6.0 – 16.8 13.0 1.2 6.5 16M8-45 7TCA302340R0009 100
M10 6.0 – 18.2 15.0 1.1 8.0 16M10-45 7TCA302340R0010 100
25 mm² M6 7.3 – 18.0 14.0 1.6 8.0 25M6-45 7TCA302340R0011 100
M8 7.3 – 18.0 15.5 1.6 8.0 25M8-45 7TCA302340R0012 100
M10 7.3 – 18.0 15.5 1.5 8.0 25M10-45 7TCA302340R0013 100
35 mm² M6 8.9 – 19.5 15.5 2.1 8.5 35M6-45 7TCA302340R0014 100
M8 8.9 – 19.5 15.5 2.1 8.5 35M8-45 7TCA302340R0015 100
M10 8.9 – 19.5 15.5 2.1 8.5 35M10-45 7TCA302340R0016 100
M12 8.9 – 25.0 21.5 1.5 11.5 35M12-45 7TCA302340R0017 100
50 mm² M6 9.8 – 21.5 18.0 2.5 10.0 50M6-45 7TCA302350R0000 50
M8 9.8 – 21.5 18.0 2.5 10.0 50M8-45 7TCA302350R0001 50
M10 9.8 – 21.5 18.0 2.5 10.0 50M10-45 7TCA302350R0002 50
C M12 9.8 – 25.0 23.0 1.8 11.0 50M12-45 7TCA302350R0003 50
70 mm² M6 12.2 – 26.0 20.8 2.9 11.5 70M6-45 7TCA302350R0004 50
M8 12.2 – 26.0 20.8 2.9 11.5 70M8-45 7TCA302350R0005 50
F
M10 12.2 – 26.0 20.8 2.9 11.5 70M10-45 7TCA302350R0006 50
M12 12.2 – 26.0 20.8 2.8 11.5 70M12-45 7TCA302350R0007 50
I
B 95 mm² M8 13.5 – 27.5 24.5 3.1 13.0 95M8-45 7TCA302350R0008 50
D
M10 13.5 – 27.5 24.5 3.1 13.0 95M10-45 7TCA302350R0009 50
M12 13.5 – 27.5 24.5 3.0 13.0 95M12-45 7TCA302350R0010 50
M16 13.5 – 27.5 24.5 2.9 13.0 95M16-45 7TCA302350R0011 50
120 mm² M8 15.2 – 28.0 27.5 3.5 13.5 120M8-45 7TCA302350R0012 50
M10 15.2 – 28.0 27.5 3.5 13.5 120M10-45 7TCA302350R0013 50
M12 15.2 – 28.0 27.5 3.5 13.5 120M12-45 7TCA302350R0014 50
M16 15.2 – 28.0 27.5 3.4 13.5 120M16-45 7TCA302350R0015 50
06
150 mm² M8 16.5 – 33.5 30.5 4.5 15.5 150M8-45 7TCA302360R0000 20
M10 16.5 – 33.5 30.5 4.5 15.5 150M10-45 7TCA302360R0001 20
M12 16.5 – 33.5 30.5 4.5 15.5 150M12-45 7TCA302360R0002 20
M16 16.5 – 33.5 30.5 4.3 15.5 150M16-45 7TCA302360R0003 20
M20 16.5 – 37.0 30.5 4.3 15.5 150M20-45 7TCA302360R0004 20
