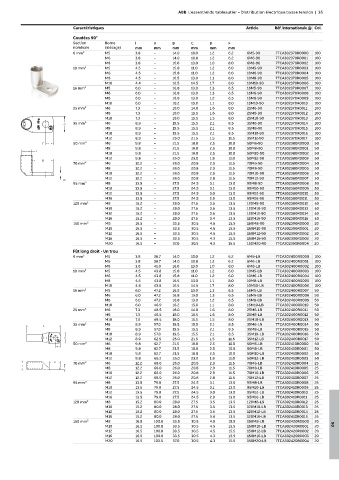

ABB L'essentiel du tableautier – Distribution électrique basse tension | 35

Caractéristiques Article Réf. internationale @ Col.
Coudées 90°
Section Borne l A B C D F
nominale (alésage) mm mm mm mm mm mm
6 mm² M5 3.8 – 14.0 10.0 1.2 6.2 6M5-90 7TCA302370R0000 100
M6 3.8 – 14.0 10.8 1.2 6.2 6M6-90 7TCA302370R0001 100
M8 3.8 – 16.0 13.0 1.0 8.0 6M8-90 7TCA302370R0002 100
10 mm² M5 4.5 – 15.8 11.0 1.2 6.0 10M5-90 7TCA302370R0003 100
M6 4.5 – 15.8 11.0 1.2 6.0 10M6-90 7TCA302370R0004 100
M8 4.5 – 16.5 13.0 1.1 8.0 10M8-90 7TCA302370R0005 100
M10 4.4 – 16.5 14.5 1.7 8.0 10M10-90 7TCA302370R0006 100
16 mm² M5 6.0 – 16.8 13.0 1.3 6.5 16M5-90 7TCA302370R0007 100
M6 6.0 – 16.8 13.0 1.3 6.5 16M6-90 7TCA302370R0008 100
M8 6.0 – 16.8 13.0 1.2 6.5 16M8-90 7TCA302370R0009 100
M10 6.0 – 18.2 15.0 1.1 8.0 16M10-90 7TCA302370R0010 100
25 mm² M6 7.3 – 18.0 14.0 1.6 8.0 25M6-90 7TCA302370R0011 100
M8 7.3 – 18.0 15.5 1.6 8.0 25M8-90 7TCA302370R0012 100
M10 7.3 – 18.0 15.5 1.5 8.0 25M10-90 7TCA302370R0013 100
C 35 mm² M6 8.9 – 19.5 15.5 2.1 8.5 35M6-90 7TCA302370R0014 100
M8 8.9 – 19.5 15.5 2.1 8.5 35M8-90 7TCA302370R0015 100
M10 8.9 – 19.5 15.5 2.1 8.5 35M10-90 7TCA302370R0016 100
M12 8.9 – 25.0 21.5 1.5 11.5 35M12-90 7TCA302370R0017 100
F 50 mm² M6 9.8 – 21.5 18.0 2.5 10.0 50M6-90 7TCA302380R0000 50
M8 9.8 – 21.5 18.0 2.5 10.0 50M8-90 7TCA302380R0001 50
I
M10 9.8 – 21.5 18.0 2.5 10.0 50M10-90 7TCA302380R0002 50
M12 9.8 – 25.0 23.0 1.8 11.0 50M12-90 7TCA302380R0003 50
B
70 mm² M6 12.2 – 26.0 20.8 2.9 11.5 70M6-90 7TCA302380R0004 50
M8 12.2 – 26.0 20.8 2.9 11.5 70M8-90 7TCA302380R0005 50
M10 12.2 – 26.0 20.8 2.9 11.5 70M10-90 7TCA302380R0006 50
M12 12.2 – 26.0 20.8 2.8 11.5 70M12-90 7TCA302380R0007 50
D
95 mm² M8 13.5 – 27.5 24.5 3.1 13.0 95M8-90 7TCA302380R0008 50
M10 13.5 – 27.5 24.5 3.1 13.0 95M10-90 7TCA302380R0009 50
M12 13.5 – 27.5 24.5 3.0 13.0 95M12-90 7TCA302380R0010 50
M16 13.5 – 27.5 24.5 2.9 13.0 95M16-90 7TCA302380R0011 50
120 mm² M8 15.2 – 28.0 27.5 3.5 13.5 120M8-90 7TCA302380R0012 50
M10 15.2 – 28.0 27.5 3.5 13.5 120M10-90 7TCA302380R0013 50
M12 15.2 – 28.0 27.5 3.5 13.5 120M12-90 7TCA302380R0014 50
M16 15.2 – 28.0 27.5 3.4 13.5 120M16-90 7TCA302380R0015 50
150 mm² M8 16.5 – 33.5 30.5 4.5 15.5 150M8-90 7TCA302390R0000 20
M10 16.5 – 33.5 30.5 4.5 15.5 150M10-90 7TCA302390R0001 20
M12 16.5 – 33.5 30.5 4.5 15.5 150M12-90 7TCA302390R0002 20
M16 16.5 – 33.5 30.5 4.3 15.5 150M16-90 7TCA302390R0003 20
M20 16.5 – 37.0 30.5 4.3 15.5 150M20-90 7TCA302390R0004 20
Fût long droit - Un trou
6 mm² M5 3.8 38.7 14.0 10.0 1.2 6.2 6M5-LB 7TCA302400R0000 100
M6 3.8 38.7 14.0 10.8 1.2 6.2 6M6-LB 7TCA302400R0001 100
M8 3.8 41.0 16.0 13.0 1.0 8.0 6M8-LB 7TCA302400R0002 100
10 mm² M5 4.5 43.8 15.8 11.0 1.2 6.0 10M5-LB 7TCA302400R0003 100
M6 4.5 43.8 15.8 11.0 1.2 6.0 10M6-LB 7TCA302400R0004 100
M8 4.5 43.8 16.5 13.0 1.1 8.0 10M8-LB 7TCA302400R0005 100
M10 4.4 43.8 16.5 14.5 1.7 8.0 10M10-LB 7TCA302400R0006 100
16 mm² M5 6.0 47.2 16.8 13.0 1.3 6.5 16M5-LB 7TCA302400R0007 50
M6 6.0 47.2 16.8 13.0 1.3 6.5 16M6-LB 7TCA302400R0008 50
M8 6.0 47.2 16.8 13.0 1.2 6.5 16M8-LB 7TCA302400R0009 50
M10 6.0 46.9 18.2 15.0 1.1 8.0 16M10-LB 7TCA302400R0010 50
25 mm² M6 7.3 48.5 18.0 14.0 1.6 8.0 25M6-LB 7TCA302400R0011 50
M8 7.3 48.5 18.0 15.5 1.6 8.0 25M8-LB 7TCA302400R0012 50
M10 7.3 48.5 18.0 15.5 1.5 8.0 25M10-LB 7TCA302400R0013 50
35 mm² M6 8.9 57.0 19.5 15.5 2.1 8.5 35M6-LB 7TCA302400R0014 50
A
M8 8.9 57.0 19.5 15.5 2.1 8.5 35M8-LB 7TCA302400R0015 50
M10 8.9 57.0 19.5 15.5 2.1 8.5 35M10-LB 7TCA302400R0016 50
C M12 8.9 62.5 25.0 21.5 1.5 11.5 35M12-LB 7TCA302400R0017 50
50 mm² M6 9.8 62.7 21.5 18.0 2.5 10.0 50M6-LB 7TCA302410R0000 50
F
M8 9.8 62.7 21.5 18.0 2.5 10.0 50M8-LB 7TCA302410R0001 50
M10 9.8 62.7 21.5 18.0 2.5 10.0 50M10-LB 7TCA302410R0002 50
M12 9.8 66.2 25.0 23.0 1.8 11.0 50M12-LB 7TCA302410R0003 50
B 70 mm² M6 12.2 68.0 26.0 20.8 2.9 11.5 70M6-LB 7TCA302410R0004 25
I D
M8 12.2 68.0 26.0 20.8 2.9 11.5 70M8-LB 7TCA302410R0005 25
M10 12.2 68.0 26.0 20.8 2.9 11.5 70M10-LB 7TCA302410R0006 25
M12 12.2 68.0 26.0 20.8 2.8 11.5 70M12-LB 7TCA302410R0007 25
95 mm² M8 13.5 79.0 27.5 24.5 3.1 13.0 95M8-LB 7TCA302410R0008 25
M10 13.5 79.0 27.5 24.5 3.1 13.0 95M10-LB 7TCA302410R0009 25
M12 13.5 79.0 27.5 24.5 3.0 13.0 95M12-LB 7TCA302410R0010 25
M16 13.5 79.0 27.5 24.5 2.9 13.0 95M16-LB 7TCA302410R0011 25
120 mm² M8 15.2 80.0 28.0 27.5 3.5 13.5 120M8-LB 7TCA302410R0012 25
M10 15.2 80.0 28.0 27.5 3.5 13.5 120M10-LB 7TCA302410R0013 25
M12 15.2 80.0 28.0 27.5 3.5 13.5 120M12-LB 7TCA302410R0014 25
M16 15.2 80.0 28.0 27.5 3.4 13.5 120M16-LB 7TCA302410R0015 25
150 mm² M8 16.5 100.0 33.5 30.5 4.5 15.5 150M8-LB 7TCA302420R0000 20
M10 16.5 100.0 33.5 30.5 4.5 15.5 150M10-LB 7TCA302420R0001 20 06
M12 16.5 100.0 33.5 30.5 4.5 15.5 150M12-LB 7TCA302420R0002 20
M16 16.5 100.0 33.5 30.5 4.3 15.5 150M16-LB 7TCA302420R0003 20
M20 16.5 103.5 37.0 30.5 4.3 15.5 150M20-LB 7TCA302420R0004 20
