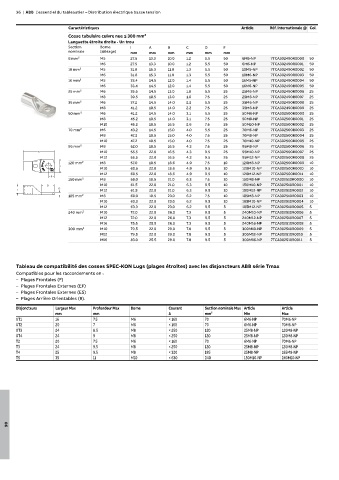

36 | ABB L'essentiel du tableautier – Distribution électrique basse tension

Caractéristiques Article Réf. internationale @ Col.
Cosse tubulaire cuivre nue ≤ 300 mm²
Languette étroite droite - Un trou
Section Borne l A B C D F
nominale (alésage) mm mm mm mm mm mm
6 mm² M5 27.5 13.3 10.0 1.2 5.5 50 6M5-NP 7TCA302490R0000 50
M6 27.5 13.3 10.0 1.2 5.5 50 6M6-NP 7TCA302490R0001 50
10 mm² M5 31.8 15.3 11.0 1.3 5.5 50 10M5-NP 7TCA302490R0002 50
M6 31.8 15.3 11.0 1.3 5.5 50 10M6-NP 7TCA302490R0003 50
16 mm² M5 33.4 14.5 12.0 1.4 5.5 50 16M5-NP 7TCA302490R0004 50
M6 33.4 14.5 12.0 1.4 5.5 50 16M6-NP 7TCA302490R0005 50
25 mm² M6 35.5 14.5 13.0 1.8 5.5 25 25M6-NP 7TCA302490R0006 25
M8 39.5 18.5 13.0 1.8 7.5 25 25M8-NP 7TCA302490R0007 25
35 mm² M6 37.2 14.5 14.0 2.2 5.5 25 35M6-NP 7TCA302490R0008 25
M8 41.2 18.5 14.0 2.2 7.5 25 35M8-NP 7TCA302490R0009 25
50 mm² M6 41.2 14.5 14.0 3.1 5.5 25 50M6-NP 7TCA302500R0000 25
M8 45.2 18.5 14.0 3.1 7.5 25 50M8-NP 7TCA302500R0001 25
M10 45.2 18.5 16.5 2.6 7.5 25 50M10-NP 7TCA302500R0002 25
70 mm² M6 43.2 14.5 15.0 4.0 5.5 25 70M6-NP 7TCA302500R0003 25
M8 47.2 18.5 15.0 4.0 7.5 25 70M8-NP 7TCA302500R0004 25
M10 47.2 18.5 15.0 4.0 7.5 25 70M10-NP 7TCA302500R0005 25
95 mm² M8 52.0 18.5 16.5 4.3 7.5 25 95M8-NP 7TCA302500R0006 25
A M10 55.5 22.0 16.5 4.3 9.5 25 95M10-NP 7TCA302500R0007 25
M12 55.5 22.0 16.5 4.3 9.5 25 95M12-NP 7TCA302500R0008 25
N 120 mm² M8 57.0 18.5 18.6 4.9 7.5 10 120M8-NP 7TCA302500R0009 10
C
M10 60.5 22.0 18.6 4.9 9.5 10 120M10-NP 7TCA302500R0010 10
M12 60.5 22.0 18.6 4.9 9.5 10 120M12-NP 7TCA302500R0011 10
F
150 mm² M8 58.0 18.5 21.0 6.3 7.5 10 150M8-NP 7TCA302510R0000 10
B M10 61.5 22.0 21.0 6.3 9.5 10 150M10-NP 7TCA302510R0001 10
I D M12 61.5 22.0 21.0 6.3 9.5 10 150M12-NP 7TCA302510R0002 10
185 mm² M8 60.0 18.5 23.0 6.2 7.5 10 185M8-NP 7TCA302510R0003 10
M10 63.3 22.0 23.0 6.2 9.5 10 185M10-NP 7TCA302510R0004 10
M12 63.3 22.0 23.0 6.2 9.5 5 185M12-NP 7TCA302510R0005 5
240 mm² M10 72.0 22.0 26.0 7.3 9.5 5 240M10-NP 7TCA302510R0006 5
M12 72.0 22.0 26.0 7.3 9.5 5 240M12-NP 7TCA302510R0007 5
M16 75.5 25.5 26.0 7.3 9.5 5 240M16-NP 7TCA302510R0008 5
300 mm² M10 79.5 22.0 29.0 7.8 9.5 5 300M10-NP 7TCA302510R0009 5
M12 79.5 22.0 29.0 7.8 9.5 5 300M12-NP 7TCA302510R0010 5
M16 83.0 25.5 29.0 7.8 9.5 5 300M16-NP 7TCA302510R0011 5

Tableau de compatibilité des cosses SPEC-KON Lugs (plages étroites) avec les disjoncteurs ABB série Tmax
Compatibles pour les raccordements en :
– Plages Frontales (F)
– Plages Frontales Externes (EF)
– Plages Frontales Externes (ES)
– Plages Arrière Orientables (R).
Disjoncteurs Largeur Max Profondeur Max Borne Courant Section nominale Max Article Article
mm mm A mm² Min Max
XT1 16 7.5 M6 < 160 70 6M6-NP 70M6-NP
XT2 20 7 M6 < 160 70 6M6-NP 70M6-NP
XT3 24 8.5 M8 < 250 120 25M8-NP 120M8-NP
XT4 24 9 M8 < 250 120 25M8-NP 120M8-NP
T2 20 7.5 M6 < 160 70 6M6-NP 70M6-NP
T3 24 9.5 M8 < 250 120 25M8-NP 120M8-NP
T4 25 9.5 M8 < 320 185 25M8-NP 185M8-NP
T5 35 11 M10 < 630 240 150M10-NP 240M10-NP
