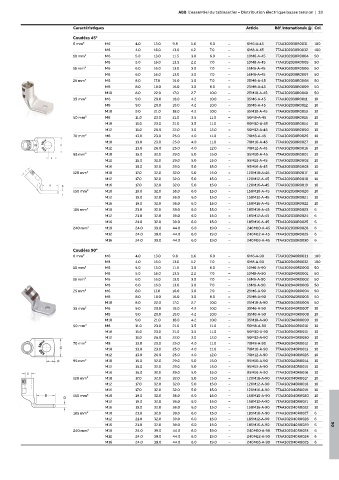

ABB L'essentiel du tableautier – Distribution électrique basse tension | 33

Caractéristiques Article Réf. internationale @ Col.
Coudées 45°
6 mm² M6 4.0 13.0 9.8 1.6 6.0 – 6M6-A-45 7TAA302030R0031 100
M8 4.0 16.0 13.0 1.2 7.0 – 6M8-A-45 7TAA302030R0032 100
10 mm² M6 5.0 13.0 11.5 3.0 6.0 – 10M6-A-45 7TAA302030R0004 50
M8 5.0 16.0 13.5 2.2 7.0 – 10M8-A-45 7TAA302030R0005 50
16 mm² M6 6.0 16.0 13.0 3.0 7.0 – 16M6-A-45 7TAA302030R0006 50
M8 6.0 16.0 13.0 3.0 7.0 – 16M8-A-45 7TAA302030R0007 50
25 mm² M6 8.0 17.0 16.0 3.0 7.0 – 25M6-A-45 7TAA302030R0008 50
M8 8.0 18.0 16.0 3.0 8.0 – 25M8-A-45 7TAA302030R0009 50
M10 8.0 22.0 17.0 2.7 10.0 – 25M10-A-45 7TAA302030R0010 50
35 mm² M6 9.0 20.0 18.0 4.2 10.0 – 35M6-A-45 7TAA302030R0011 10
M8 9.0 20.0 18.0 4.2 10.0 – 35M8-A-45 7TAA302030R0012 10
M10 9.0 21.0 18.0 4.2 10.0 – 35M10-A-45 7TAA302030R0013 10
50 mm² M8 11.0 23.0 21.0 3.5 11.0 – 50M8-A-45 7TAA302030R0015 10
M10 11.0 23.0 21.0 3.5 11.0 – 50M10-A-45 7TAA302030R0014 10
M12 11.0 26.0 22.0 3.0 12.0 – 50M12-A-45 7TAA302030R0000 10
70 mm² M8 13.0 23.0 25.0 4.0 11.0 – 70M8-A-45 7TAA302030R0026 10
M10 13.0 23.0 25.0 4.0 11.0 – 70M10-A-45 7TAA302030R0027 10
M12 13.0 26.0 25.0 4.0 12.0 – 70M12-A-45 7TAA302030R0016 10
95 mm² M10 15.0 32.0 29.0 5.0 15.0 – 95M10-A-45 7TAA302030R0001 10
M12 15.0 32.0 29.0 5.0 15.0 – 95M12-A-45 7TAA302030R0002 10
M16 15.0 32.0 29.0 5.0 15.0 – 95M16-A-45 7TAA302030R0003 10
120 mm² M10 17.0 32.0 32.0 5.0 15.0 – 120M10-A-45 7TAA302030R0017 10
M12 17.0 32.0 32.0 5.0 15.0 – 120M12-A-45 7TAA302030R0018 10
M16 17.0 32.0 32.0 5.0 15.0 – 120M16-A-45 7TAA302030R0019 10
150 mm² M10 19.0 32.0 36.0 6.0 15.0 – 150M10-A-45 7TAA302030R0020 10
M12 19.0 32.0 36.0 6.0 15.0 – 150M12-A-45 7TAA302030R0021 10
M16 19.0 32.0 36.0 6.0 15.0 – 150M16-A-45 7TAA302030R0022 10
185 mm² M10 21.0 32.0 39.0 6.0 15.0 – 185M10-A-45 7TAA302030R0023 6
M12 21.0 32.0 39.0 6.0 15.0 – 185M12-A-45 7TAA302030R0024 6
M16 21.0 32.0 39.0 6.0 15.0 – 185M16-A-45 7TAA302030R0025 6
240 mm² M10 24.0 39.0 44.0 6.0 19.0 – 240M10-A-45 7TAA302030R0028 6
M12 24.0 39.0 44.0 6.0 19.0 – 240M12-A-45 7TAA302030R0029 6
M16 24.0 39.0 44.0 6.0 19.0 – 240M16-A-45 7TAA302030R0030 6
Coudées 90°
6 mm² M6 4.0 13.0 9.8 1.6 6.0 – 6M6-A-90 7TAA302040R0031 100
M8 4.0 16.0 13.0 1.2 7.0 – 6M8-A-90 7TAA302040R0032 100
10 mm² M6 5.0 13.0 11.5 3.0 6.0 – 10M6-A-90 7TAA302040R0000 50
M8 5.0 16.0 13.5 2.2 7.0 – 10M8-A-90 7TAA302040R0001 50
16 mm² M6 6.0 16.0 13.0 3.0 7.0 – 16M6-A-90 7TAA302040R0002 50
M8 6.0 16.0 13.0 3.0 7.0 – 16M8-A-90 7TAA302040R0003 50
25 mm² M6 8.0 17.0 16.0 3.0 7.0 – 25M6-A-90 7TAA302040R0004 50
M8 8.0 18.0 16.0 3.0 8.0 – 25M8-A-90 7TAA302040R0005 50
M10 8.0 22.0 17.0 2.7 10.0 – 25M10-A-90 7TAA302040R0006 50
35 mm² M6 9.0 20.0 18.0 4.2 10.0 – 35M6-A-90 7TAA302040R0007 10
M8 9.0 20.0 18.0 4.2 10.0 – 35M8-A-90 7TAA302040R0008 10
M10 9.0 21.0 18.0 4.2 10.0 – 35M10-A-90 7TAA302040R0009 10
50 mm² M8 11.0 23.0 21.0 3.5 11.0 – 50M8-A-90 7TAA302040R0010 10
M10 11.0 23.0 21.0 3.5 11.0 – 50M10-A-90 7TAA302040R0011 10
M12 11.0 26.0 22.0 3.0 12.0 – 50M12-A-90 7TAA302040R0030 10
70 mm² M8 13.0 23.0 25.0 4.0 11.0 – 70M8-A-90 7TAA302040R0012 10
M10 13.0 23.0 25.0 4.0 11.0 – 70M10-A-90 7TAA302040R0013 10
M12 13.0 26.0 25.0 4.0 12.0 – 70M12-A-90 7TAA302040R0026 10
95 mm² M10 15.0 32.0 29.0 5.0 15.0 – 95M10-A-90 7TAA302040R0014 10
M12 15.0 32.0 29.0 5.0 15.0 – 95M12-A-90 7TAA302040R0015 10
M16 15.0 32.0 29.0 5.0 15.0 – 95M16-A-90 7TAA302040R0016 10
120 mm² M10 17.0 32.0 32.0 5.0 15.0 – 120M10-A-90 7TAA302040R0017 10
M12 17.0 32.0 32.0 5.0 15.0 – 120M12-A-90 7TAA302040R0018 10
M16 17.0 32.0 32.0 5.0 15.0 – 120M16-A-90 7TAA302040R0019 10
150 mm² M10 19.0 32.0 36.0 6.0 15.0 – 150M10-A-90 7TAA302040R0020 10
M12 19.0 32.0 36.0 6.0 15.0 – 150M12-A-90 7TAA302040R0021 10
M16 19.0 32.0 36.0 6.0 15.0 – 150M16-A-90 7TAA302040R0022 10
185 mm² M10 21.0 32.0 39.0 6.0 15.0 – 185M10-A-90 7TAA302040R0027 6
M12 21.0 32.0 39.0 6.0 15.0 – 185M12-A-90 7TAA302040R0028 6
M16 21.0 32.0 39.0 6.0 15.0 – 185M16-A-90 7TAA302040R0029 6 06
240 mm² M10 24.0 39.0 44.0 6.0 19.0 – 240M10-A-90 7TAA302040R0023 6
M12 24.0 39.0 44.0 6.0 19.0 – 240M12-A-90 7TAA302040R0024 6
M16 24.0 39.0 44.0 6.0 19.0 – 240M16-A-90 7TAA302040R0025 6
