8/42 ABB PRODUITS ET SOLUTIONS MOYENNE ET BASSE TENSION

—

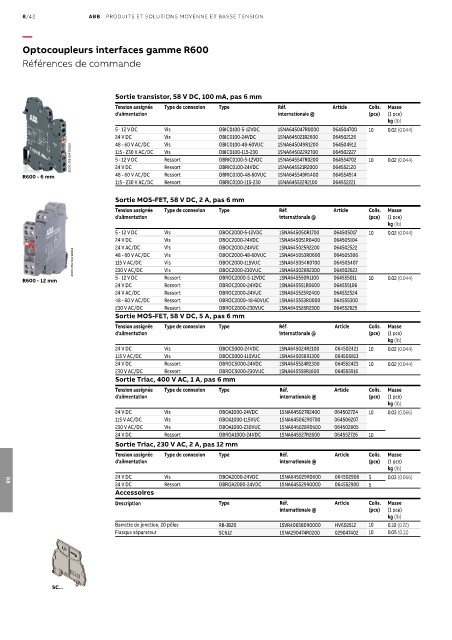

Optocoupleurs interfaces gamme R600

Références de commande

Sortie transistor, 58 V DC, 100 mA, pas 6 mm
Tension assignée Type de connexion Type Réf. Article Colis. Masse
d'alimentation internationale @ (pce) (1 pce)
kg (lb)
5 - 12 V DC Vis OBIC0100-5-12VDC 1SNA645047R0000 064504700 10 0.02 (0.044)
24 V DC Vis OBIC0100-24VDC 1SNA645021R2600 064502126
Vis
064504912
OBIC0100-48-60VUC
48 - 60 V AC/DC
1SNA645049R1200
2CDC 291 024 S0013 115 - 230 V AC/DC Vis OBIC0100-115-230 1SNA645022R2700 064502227 10 0.02 (0.044)
Ressort
064554702
5 - 12 V DC
1SNA645547R0200
OBRIC0100-5-12VDC
1SNA645521R2000
064552120
Ressort
OBRIC0100-24VDC
24 V DC
R600 - 6 mm 48 - 60 V AC/DC Ressort OBRIC0100-48-60VUC 1SNA645549R1400 064554914
115 - 230 V AC/DC Ressort OBRIC0100-115-230 1SNA645522R2100 064552221
Sortie MOS-FET, 58 V DC, 2 A, pas 6 mm
Tension assignée Type de connexion Type Réf. Article Colis. Masse
d'alimentation internationale @ (pce) (1 pce)
kg (lb)
5 - 12 V DC Vis OBOC2000-5-12VDC 1SNA645050R1700 064505017 10 0.02 (0.044)
24 V DC Vis OBOC2000-24VDC 1SNA645051R0400 064505104
24 V AC/DC Vis OBOC2000-24VUC 1SNA645025R2200 064502522
2CDC 291 013 S0013 48 - 60 V AC/DC Vis OBOC2000-48-60VUC 1SNA645053R0600 064505306
064505407
115 V AC/DC
Vis
1SNA645054R0700
OBOC2000-115VUC
230 V AC/DC
1SNA645026R2300
OBOC2000-230VUC
Vis
064502623
R600 - 12 mm 5 - 12 V DC Ressort OBROC2000-5-12VDC 1SNA645550R1100 064555011 10 0.02 (0.044)
24 V DC Ressort OBROC2000-24VDC 1SNA645551R0600 064555106
24 V AC/DC Ressort OBROC2000-24VUC 1SNA645525R2400 064552524
48 - 60 V AC/DC Ressort OBROC2000-48-60VUC 1SNA645553R0000 064555300
230 V AC/DC Ressort OBROC2000-230VUC 1SNA645526R2500 064552625
Sortie MOS-FET, 58 V DC, 5 A, pas 6 mm
Tension assignée Type de connexion Type Réf. Article Colis. Masse
d'alimentation internationale @ (pce) (1 pce)
kg (lb)
24 V DC Vis OBOC5000-24VDC 1SNA645024R2100 064502421 10 0.02 (0.044)
115 V AC/DC Vis OBOC5000-115VUC 1SNA645058R1300 064505813
24 V DC Ressort OBROC5000-24VDC 1SNA645524R2300 064552423 10 0.02 (0.044)
230 V AC/DC Ressort OBROC5000-230VUC 1SNA645559R1600 064555916
Sortie Triac, 400 V AC, 1 A, pas 6 mm
Tension assignée Type de connexion Type Réf. Article Colis. Masse
d'alimentation internationale @ (pce) (1 pce)
kg (lb)
24 V DC Vis OBOA1000-24VDC 1SNA645027R2400 064502724 10 0.03 (0.066)
115 V AC/DC Vis OBOA1000-115VUC 1SNA645062R0700 064506207
230 V AC/DC Vis OBOA1000-230VUC 1SNA645028R0500 064502805
24 V DC Ressort OBROA1000-24VDC 1SNA645527R2600 064552726 10
Sortie Triac, 230 V AC, 2 A, pas 12 mm
Tension assignée Type de connexion Type Réf. Article Colis. Masse
d'alimentation internationale @ (pce) (1 pce)
kg (lb)
24 V DC Vis OBOA2000-24VDC 1SNA645029R0600 064502906 5 0.03 (0.066)
24 V DC Ressort OBROA2000-24VDC 1SNA645529R0000 064552900 5
08
Accessoires
Description Type Réf. Article Colis. Masse
internationale @ (pce) (1 pce)
kg (lb)
Barrette de jonction, 20 pôles RB-JB20 1SVR406580R0000 HV602512 10 0.10 (0.22)
Flasque séparateur SC612 1SNA290474R0200 029047402 10 0.05 (0.11)

SC...
