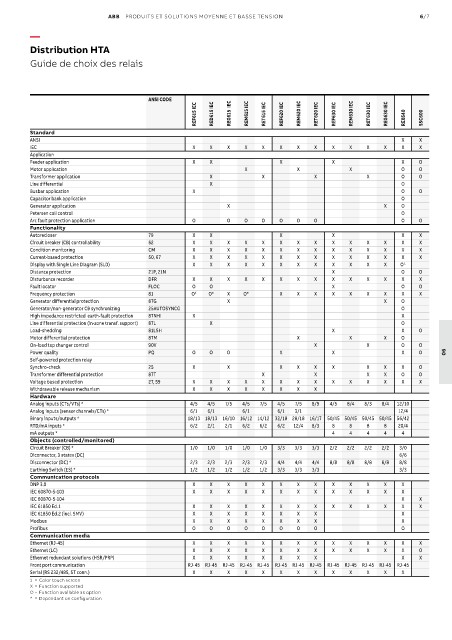

Page 937 - Les indispensables 2021

ABB PRODUITS ET SOLUTIONS MOYENNE ET BASSE TENSION 6/7

—
Distribution HTA

Guide de choix des relais

ANSI CODE
REF615 IEC RED615 IEC REG615 IEC REM615 IEC RET615 IEC REF620 IEC REM620 IEC RET620 IEC REF630 IEC REM630 IEC RET630 IEC REG630 IEC REX640 SSC600

Standard
ANSI X X
IEC X X X X X X X X X X X X X X
Application
Feeder application X X X X X O
Motor application X X X O O
Transformer application X X X X O O
Line differential X O
Busbar application X O O
Capacitor bank application O
Generator application X X O
Petersen coil control O
Arc fault protection application O O O O O O O O O
Functionality
Autorecloser 79 X X X X X X
Circuit breaker (CB) controllability 52 X X X X X X X X X X X X X X
Condition monitoring CM X X X X X X X X X X X X X X
Current-based protection 50, 67 X X X X X X X X X X X X X X
Display with Single Line Diagram (SLD) X X X X X X X X X X X X O 1
Distance protection 21P, 21N X O O
Disturbance recorder DFR X X X X X X X X X X X X X X
Fault locator FLOC O O X O O
Frequency protection 81 O X O* X O* X X X X X X X X X
Generator differential protection 87G X X O
Generator/non-generator CB synchronizing 25AUTOSYNCG O
High impedance restricted earth-fault protection 87NHI X X
Line differential protection (in-zone transf. support) 87L X O
Load-shedding 81LSH X X O
Motor differential protection 87M X X X O
On-load tap changer control 90V X X O O
Power quality PQ O O O X X X O 06
Self-powered protection relay
Synchro-check 25 X X X X X X X X X O
Transformer differential protection 87T X X X X O O
Voltage based protection 27, 59 X X X X X X X X X X X X X X
Withdrawable release mechanism X X X X X X X X
Hardware
Analog inputs (CTs/VTs) * 4/5 4/5 7/5 4/5 7/5 4/5 7/5 8/9 4/5 8/4 8/3 8/4 12/10
Analog inputs (sensor channels/CTs) * 6/1 6/1 6/1 6/1 3/1 12/4
Binary inputs/outputs * 18/13 18/13 16/10 16/12 14/12 32/18 28/18 16/17 50/45 50/45 50/45 50/45 56/42
RTD/mA inputs * 6/2 2/1 2/1 6/2 6/2 6/2 12/4 8/3 8 8 8 8 20/4
mA outputs * 4 4 4 4 4
Objects (controlled/monitored)
Circuit Breaker (CB) * 1/0 1/0 1/0 1/0 1/0 3/3 3/3 3/3 2/2 2/2 2/2 2/2 3/0
Diconnector, 3 states (DC) 6/6
Disconnector (DC) * 2/3 2/3 2/3 2/3 2/3 4/4 4/4 4/4 8/8 8/8 8/8 8/8 8/8
Earthing Switch (ES) * 1/2 1/2 1/2 1/2 1/2 3/3 3/3 3/3 3/3
Communication protocols
DNP 3.0 X X X X X X X X X X X X X
IEC 60870-5-103 X X X X X X X X X X X X X
IEC 60870-5-104 X X
IEC 61850 Ed.1 X X X X X X X X X X X X X X
IEC 61850 Ed.2 (incl. SMV) X X X X X X X X X
Modbus X X X X X X X X X
Profibus O O O O O O O O O
Communication media
Ethernet (RJ-45) X X X X X X X X X X X X X X
Ethernet (LC) X X X X X X X X X X X X X O
Ethernet redundant solutions (HSR/PRP) X X X X X X X X X X
Front port communication RJ-45 RJ-45 RJ-45 RJ-45 RJ-45 RJ-45 RJ-45 RJ-45 RJ-45 RJ-45 RJ-45 RJ-45 RJ-45
Serial (RS 232/485, ST conn.) X X X X X X X X X X X X X
1 = Color touch screen
X = Function supported
O = Function available as option
* = Dependant on configuration
