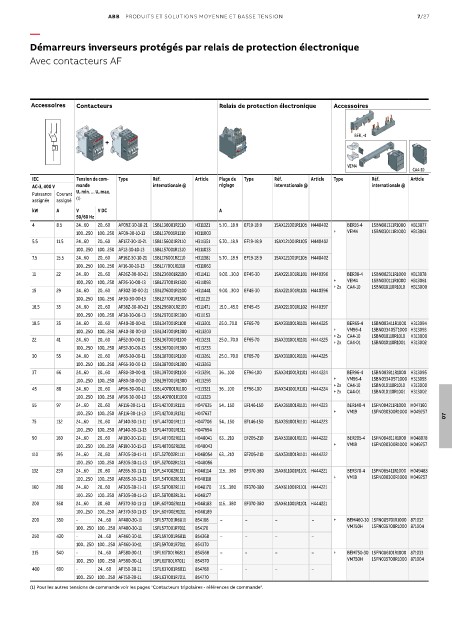

Page 985 - Les indispensables 2021
P. 985
ABB PRODUITS ET SOLUTIONS MOYENNE ET BASSE TENSION 7/27
—
Démarreurs inverseurs protégés par relais de protection électronique
Avec contacteurs AF
Accessoires Contacteurs Relais de protection électronique Accessoires
BER..-4
+
VEM4
CA4-10
IEC Tension de com- Type Réf. Article Plage de Type Réf. Article Type Réf. Article
AC-3, 400 V mande internationale @ réglage internationale @ internationale @
Puissance Courant U c min. ... U c max.
assignée assigné (1)
kW A V V DC A
50/60 Hz
4 8.5 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 5.70…18.9 EF19-18.9 1SAX121001R1105 H440402 BER16-4 1SBN081311R1000 H313077
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003 + VEM4 1SBN030111R1000 H313061
5.5 11.5 24...60 20...60 AF12Z-30-10-21 1SBL156001R2110 H311351 5.70…18.9 EF19-18.9 1SAX121001R1105 H440402
100...250 100...250 AF12-30-10-13 1SBL157001R1310 H311033
7.5 15.5 24...60 20...60 AF16Z-30-10-21 1SBL176001R2110 H311381 5.70…18.9 EF19-18.9 1SAX121001R1105 H440402
100...250 100...250 AF16-30-10-13 1SBL177001R1310 H311063
11 22 24...60 20...60 AF26Z-30-00-21 1SBL236001R2100 H311411 9.00…30.0 EF45-30 1SAX221001R1101 H440396 BER38-4 1SBN082311R1000 H313078
100...250 100...250 AF26-30-00-13 1SBL237001R1300 H311093 + VEM4 1SBN030111R1000 H313061
15 29 24...60 20...60 AF30Z-30-00-21 1SBL276001R2100 H311441 9.00…30.0 EF45-30 1SAX221001R1101 H440396 + 2x CA4-10 1SBN010110R1010 H313000
100...250 100...250 AF30-30-00-13 1SBL277001R1300 H311123
18.5 35 24...60 20...60 AF38Z-30-00-21 1SBL296001R2100 H311471 15.0…45.0 EF45-45 1SAX221001R1102 H440397
100...250 100...250 AF38-30-00-13 1SBL297001R1300 H311153
18.5 35 24...60 20...60 AF40-30-00-11 1SBL347001R1100 H313201 25.0...70.0 EF65-70 1SAX331001R1101 H444225 BER65-4 1SBN083411R1000 H313094
100...250 100...250 AF40-30-00-13 1SBL347001R1300 H313203 + VM96-4 1SBN033405T1000 H313093
22 41 24...60 20...60 AF52-30-00-11 1SBL367001R1100 H313231 25.0…70.0 EF65-70 1SAX331001R1101 H444225 + 2x CA4-10 1SBN010110R1010 H313000
+ 2x
CA4-01
1SBN010110R1001 H313002
100...250 100...250 AF52-30-00-13 1SBL367001R1300 H313233
30 55 24...60 20...60 AF65-30-00-11 1SBL387001R1100 H313261 25.0…70.0 EF65-70 1SAX331001R1101 H444225
100...250 100...250 AF65-30-00-13 1SBL387001R1300 H313263
37 66 24...60 20...60 AF80-30-00-11 1SBL397001R1100 H313291 36…100 EF96-100 1SAX341001R1101 H444224 BER96-4 1SBN083911R1000 H313095
100...250 100...250 AF80-30-00-13 1SBL397001R1300 H313293 + VM96-4 1SBN033405T1000 H313093
45 80 24...60 20...60 AF96-30-00-11 1SBL407001R1100 H313321 36…100 EF96-100 1SAX341001R1101 H444224 + 2x CA4-10 1SBN010110R1010 H313000
CA4-01
+ 2x
1SBN010110R1001 H313002
100...250 100...250 AF96-30-00-13 1SBL407001R1300 H313323
55 97 24...60 20...60 AF116-30-11-11 1SFL427001R1111 H047635 54…150 EF146-150 1SAX351001R1101 H444223 BER140-4 1SFN084211R1000 H047160
100...250 100...250 AF116-30-11-13 1SFL427001R1311 H047637 + VM19 1SFN030300R1000 H049257 07
75 132 24...60 20...60 AF140-30-11-11 1SFL447001R1111 H047706 54…150 EF146-150 1SAX351001R1101 H444223
100...250 100...250 AF140-30-11-13 1SFL447001R1311 H047694
90 160 24...60 20...60 AF190-30-11-11 1SFL487002R1111 H048041 63…210 EF205-210 1SAX531001R1101 H444222 BER205-4 1SFN084811R1000 H048078
100...250 100...250 AF190-30-11-13 1SFL487002R1311 H048043 + VM19 1SFN030300R1000 H049257
110 195 24...60 20...60 AF205-30-11-11 1SFL527002R1111 H048054 63…210 EF205-210 1SAX531001R1101 H444222
100...250 100...250 AF205-30-11-13 1SFL527002R1311 H048056
132 230 24...60 20...60 AF265-30-11-11 1SFL547002R1111 H048114 115…380 EF370-380 1SAX611001R1101 H444221 BER370-4 1SFN085411R1000 H049483
100...250 100...250 AF265-30-11-13 1SFL547002R1311 H048118 + VM19 1SFN030300R1000 H049257
160 280 24...60 20...60 AF305-30-11-11 1SFL587002R1111 H048170 115…380 EF370-380 1SAX611001R1101 H444221
100...250 100...250 AF305-30-11-13 1SFL587002R1311 H048177
200 350 24...60 20...60 AF370-30-11-11 1SFL607002R1111 H048183 115…380 EF370-380 1SAX611001R1101 H444221
100...250 100...250 AF370-30-11-13 1SFL607002R1311 H048189
200 350 - 24…60 AF400-30-11 1SFL577001R6811 854168 – – – – + BEM460-30 1SFN085701R1000 871032
100…250 100…250 AF400-30-11 1SFL577001R7011 854170 VM750H 1SFN035700R1000 871004
250 430 - 24…60 AF460-30-11 1SFL597001R6811 854368 – – – –
100…250 100…250 AF460-30-11 1SFL597001R7011 854370
315 540 - 24…60 AF580-30-11 1SFL617001R6811 854568 – – – – + BEM750-30 1SFN086101R1000 871033
100…250 100…250 AF580-30-11 1SFL617001R7011 854570 VM750H 1SFN035700R1000 871004
400 690 - 24…60 AF750-30-11 1SFL637001R6811 854768 – – – –
100…250 100…250 AF750-30-11 1SFL637001R7011 854770
(1) Pour les autres tensions de commande voir les pages "Contacteurs tripolaires - références de commande".
