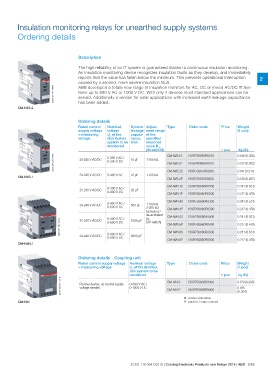

Page 133 - EPR Catalog 2015

Insulation monitoring relays for unearthed supply systems
Ordering details

Description 2

2CDC 251 017 V0012 The high reliability of an IT system is guaranteed thanks to continuous insulation monitoring.
An insulation monitoring device recognizes insulation faults as they develop, and immediately
reports that the value has fallen below the minimum. This prevents operational interruption
caused by a second, more severe insulation fault.
ABB developed a totally new range of insulation monitors for AC, DC or mixed AC/DC IT Sys-
tems up to 690 V AC or 1000 V DC. With only 4 devices most standard applications can be
served. Additionally a version for solar applications with increased earth leakage capacitance
has been added.

CM-IWS.2 Ordering details
CM-IWS.1
CM-IWN.1 Rated control Nominal System Adjust- Type Order code Price Weight
CM-IVN supply voltage voltage leakage ment range 1 pce (1 pce)
= measuring Un of the capaci- of the 1SVR730660R0100
voltage distribution tance, specified 1SVR740660R0100 kg (lb)
system to be max. response 0.148 (0.326)
monitored value Ran 0.137 (0.302)
(threshold) 0.141 (0.311)
0.130 (0.287)
2CDC 251 009 V0012 24-240 V AC/DC 0-250 V AC / 10 μF 1-100 k: CM-IWS.1S 0.241 (0.531)
0-300 V DC CM-IWS.1P 0.217 (0.478)
0.241 (0.531)
24-240 V AC/DC 0-400 V AC 10 μF 1-100 k: CM-IWS.2S 1SVR730670R0200 0.217 (0.478)
CM-IWS.2P 1SVR740670R0200 0.241 (0.531)
0.217 (0.478)
24-240 V AC/DC 0-400 V AC / 20 μF CM-IWN.1S 1SVR750660R0200 0.241 (0.531)
0-600 V DC CM-IWN.1P 1SVR760660R0200 0.217 (0.478)

24-240 V AC/DC 0-400 V AC / 500 μF 1-100 k: CM-IWN.4S 1SVR750660R0300
0-600 V DC 1000 μF 2-200 k: CM-IWN.4P 1SVR760660R0300
(activated / CM-IWN.5S 1SVR750660R0400
2CDC 251 020 V0012 24-240 V AC/DC 0-400 V AC / de-activated CM-IWN.5P 1SVR760660R0400
0-600 V DC by
DIP-switch)

24-240 V AC/DC 0-400 V AC / 2000 μF CM-IWN.6S 1SVR750660R0500
0-600 V DC CM-IWN.6P 1SVR760660R0500

Ordering details - Coupling unit

Rated control supply voltage Nominal voltage Type Order code Price Weight
= measuring voltage Un of the distribu- (1 pce)
tion system to be
monitored 1 pce kg (lb)

2CDC 252 027 V0012 Passive device, no control supply 0-690 V AC / CM-IVN.S 1SVR750669R9400 0.179 (0.395)
CM-IVN.P 1SVR760669R9400 0.165
voltage needed 0-1000 V DC (0.364)

S: screw connection
P: push-in / easy connect
