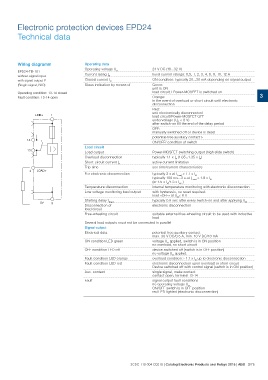

Page 275 - EPR Catalog 2015

Electronic protection devices EPD24
Technical data

Wiring diagramm Operating data 24 V DC (18...32 V) 3
Operating voltage UB
EPD24-TB-101 Current rating IN fixed current ratings: 0.5, 1, 2, 3, 4, 6, 8, 10, 12 A
without signal input Closed current I0
with signal output F Staus indication by means of ON condition: typically 20...30 mA depending on signal output
(Single signal, N/O)
Operating condition: 13-14 closed Load circuit Green:
Fault condition: 13-14 open Load output unit is ON
Overload disconnection load circuit / Power-MOSFET is switched on
LINE+ 1 Short-circuit current IK
Trip time Orange:
14 in the event of overload or short circuit until electronic
13 disconnection

2 LOAD+ Red:
unit electronically disconnected
0V 3 load circuit/Power-MOSFET OFF
undervoltage (UB < 8 V)
after switch-on till the end of the delay period

OFF:
manually switched off or device is dead

potential-free auxiliary contact F

ON/OFF/ condition of switch

Power-MOSFET switching output (high slide switch)

typically 1.1 x IN (1.05...1.35 x IN)
active current limitation

see time/current characteristics

For electronic disconnection typically 3 s at ILoad > 1.1 x IN
Temperature disconnection typically 100 ms...3 s at ILoad > 1.8 x IN
(or 1.5 x IN/1.3 x IN, )

internal temperature monitoring with electronic disconnection

Low voltage monitoring load output with hysteresis, no reset required:
load »OFF« at UB< 8 V
Starting delay tStart
Disconnection of typically 0.5 sec after every switch-on and after applying UB
load circuit
electronic disconnection

Free-wheeling circuit suitable external free-wheeling circuit to be used with inductive
load

Several load outputs must not be connected in parallel

Signal output

Electrical data potential-free auxiliary contact
max. 30 V DC/0.5 A, min. 10 V DC/10 mA

ON condition LED green voltage UB applied, switch is in ON position
no overload, no short circuit

OFF condition LED off device switched off (switch is in OFF position)
no voltage UB applied
Fault condition LED orange
Fault condition LED red overload condition > 1.1 x IN up to electronic disconnection

electronic disconnection upon overload or short circuit
Device switched off with control signal (switch is in ON position)

Aux. contact single signal, make contact
contact open, terminal 13-14

Fault signal output fault conditions

no operating voltage UB
ON/OFF switch is in OFF position

red LED lighted (electronic disconnection)

2CDC 110 004 C0210 | Catalog Electronic Products and Relays 2015 | ABB 3/76
