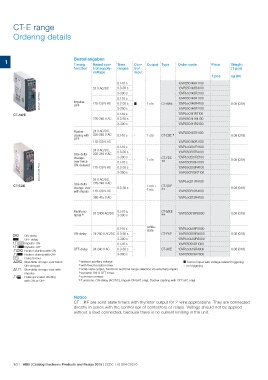

Page 32 - EPR Catalog 2015

CT-E range
Ordering details

1 Bestellangaben

CT-AWE Timing Rated con- Time Con- Output Type Order code Price Weight
CT-SDE function trol supply- ranges trol 1 pce (1 pce)
voltage Input kg (lb)

24 V AC/DC 0.1-10 s 1SVR550148R1100 0.08 (0.18)
0.3-30 s 1SVR550148R4100
2CDC 251 125 F0004 Impulse- 110-130 V AC 3-300 s ˾ 1 c/o CT-AWE 1SVR550148R2100 0.08 (0.18)
OFF 0.1-10 s - 1SVR550140R1100
0.3-30 s - 1SVR550140R4100 0.08 (0.18)
220-240 V AC 3-300 s - 1SVR550140R2100
0.1-10 s 1SVR550141R1100 0.08 (0.18)
0.3-30 s 1SVR550141R4100
3-300 s 1SVR550141R2100

Flasher 24 V AC/DC, 0.1-10 s 1 c/o 1SVR550167R1100
staring with 220-240 V AC 1 c/o CT-EBE 4)
OFF 0.1-10 s
110-130 V AC 0.3-30 s 1SVR550160R1100
3-300 s 1SVR550207R1100
Star-delta 24 V AC/DC, 0.1-10 s CT-YDE 1SVR550207R4100
change- 220-240 V AC 0.3-30 s 1SVR550207R2100
over twice 3-300 s 1) 2) 1SVR550200R1100
ON-delayed 110-130 V AC 1SVR550200R4100
2CDC 251 059 F0003 0.3-30 s 1SVR550200R2100

24 V AC/DC, 1 n/o + CT-SDE 1SVR550217R4100
Star-delta 220-240 V AC
change-over 1 n/c 2) 5) 1SVR550210R4100
with impuls 110-130 V AC 1SVR550212R4100

380-415 V AC

Multifunc- 24-240V AC/DC 0.1-10 s, - CT-MKE 1SVR550019R0000 0.08 (0.18)
tional 8) 3-300 s
3) 6)

0.1-10 s solide- 1SVR550509R1000
24-240 V AC/DC 0.3-30 s state 1SVR550509R4000
1SVR550509R2000
A ON-delay ON-delay 3-300 s - CT-EKE 1SVR550519R1000 0.08 (0.18)
B OFF-delay OFF-delay 0.1-10 s - CT-AKE 1SVR550519R4000 0.08 (0.18)
CA Impulse-ON 24-240 V AC 0.3-30 s 1SVR550519R2000
CB Impulse-OFF 3-300 s
DA Flasher starting with ON
DB Flasher staring with OFF 1) without auxiliary voltage ˾ Control input with voltage-related triggering
H Pulse former
FA Star-delta change-over twice 2) with fixed transition time - no triggering

ON-delayed 3) solid-state output, functions and time range selection via external jumpers

FC Star-delta change-over with 4) symetric ON & OFF times

impulse 5) common contact

DE Pulse generator starting 6) Functions: ON-delay (AC/DC), Impuls-ON (AC only), Flasher starting with OFF (AC only)

with ON or OFF

Notice
CT-...KE are solid-state timers with thyristor output for 2-wire applications. They are connected
directly in series with the control coil of contactors or relays. Voltage should not be applied
without a load connected, because there is no current limiting in the unit.
