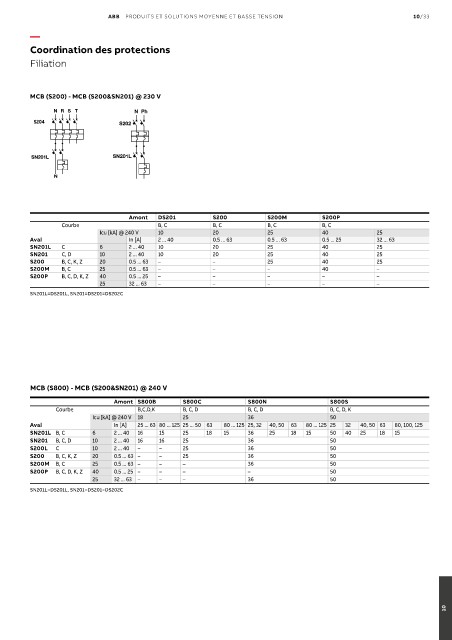

ABB PRODUITS ET SOLUTIONS MOYENNE ET BASSE TENSION 10/33

—
Coordination des protections

Filiation

MCB (S200) - MCB (S200&SN201) @ 230 V

N R S T N Ph
S204 S202
XT3

SN201L SN201L

N

Amont DS201 S200 S200M S200P
Courbe B, C B, C B, C B, C
Icu [kA] @ 240 V 10 20 25 40 25
Aval In [A] 2 ... 40 0.5 ... 63 0.5 ... 63 0.5 ... 25 32 ... 63
SN201L C 6 2 ... 40 10 20 25 40 25
SN201 C, D 10 2 ... 40 10 20 25 40 25
S200 B, C, K, Z 20 0.5 ... 63 – – 25 40 25
S200M B, C 25 0.5 ... 63 – – – 40 –
S200P B, C, D, K, Z 40 0.5 ... 25 – – – – –
25 32 ... 63 – – – – –
SN201L=DS201L, SN201=DS201=DS202C

MCB (S800) - MCB (S200&SN201) @ 240 V

Amont S800B S800C S800N S800S
Courbe B,C,D,K B, C, D B, C, D B, C, D, K
Icu [kA] @ 240 V 18 25 36 50
Aval In [A] 25 ... 63 80 ... 125 25 ... 50 63 80 ... 125 25, 32 40, 50 63 80 ... 125 25 32 40, 50 63 80, 100, 125
SN201L B, C 6 2 ... 40 16 15 25 18 15 36 25 18 15 50 40 25 18 15
SN201 B, C, D 10 2 ... 40 16 16 25 36 50
S200L C 10 2 ... 40 – – 25 36 50
S200 B, C, K, Z 20 0.5 ... 63 – – 25 36 50
S200M B, C 25 0.5 ... 63 – – – 36 50
S200P B, C, D, K, Z 40 0.5 ... 25 – – – – 50
25 32 ... 63 – – – 36 50
SN201L=DS201L, SN201=DS201=DS202C

10
