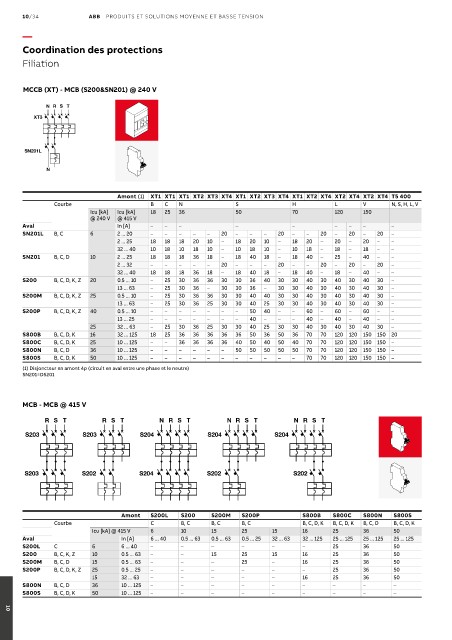

Page 1358 - Les indispensables 2021

10/34 ABB PRODUITS ET SOLUTIONS MOYENNE ET BASSE TENSION

—
Coordination des protections

Filiation

MCCB (XT) - MCB (S200&SN201) @ 240 V

N R S T
XT3

SN201L

N

Amont (1) XT1 XT1 XT1 XT2 XT3 XT4 XT1 XT2 XT3 XT4 XT1 XT2 XT4 XT2 XT4 XT2 XT4 T5 400
Courbe B C N S H L V N, S, H, L, V
Icu [kA] Icu [kA] 18 25 36 50 70 120 150
@ 240 V @ 415 V
Aval In [A] – – – – – – – – –
SN201L B, C 6 2 ... 20 – – – – – 20 – – – 20 – – 20 – 20 – 20 –
2 ... 25 18 18 18 20 10 – 18 20 10 – 18 20 – 20 – 20 – –
32 ... 40 10 18 10 18 10 – 10 18 10 – 10 18 – 18 – 18 – –
SN201 B, C, D 10 2 ... 25 18 18 18 36 18 – 18 40 18 – 18 40 – 25 – 40 – –
2 ... 32 – – – – – 20 – – – 20 – – 20 – 20 – 20 –
32 ... 40 18 18 18 36 18 – 18 40 18 – 18 40 – 18 – 40 – –
S200 B, C, D, K, Z 20 0.5 ... 10 – 25 30 36 36 30 30 36 40 30 30 40 30 40 30 40 30 –
13 ... 63 – 25 30 36 – 30 30 36 – 30 30 40 30 40 30 40 30 –
S200M B, C, D, K, Z 25 0.5 ... 10 – 25 30 36 36 30 30 40 40 30 30 40 30 40 30 40 30 –
13 ... 63 – 25 30 36 25 30 30 40 25 30 30 40 30 40 30 40 30 –
S200P B, C, D, K, Z 40 0.5 ... 10 – – – – – – – 50 40 – – 60 – 60 – 60 – –
13 ... 25 – – – – – – – 40 – – – 40 – 40 – 40 – –
25 32 ... 63 – 25 30 36 25 30 30 40 25 30 30 40 30 40 30 40 30 –
S800B B, C, D, K 16 32 ... 125 18 25 36 36 36 36 36 50 36 50 36 70 70 120 120 150 150 20
S800C B, C, D, K 25 10 ... 125 – – 36 36 36 36 40 50 40 50 40 70 70 120 120 150 150 –
S800N B, C, D 36 10 ... 125 – – – – – – 50 50 50 50 50 70 70 120 120 150 150 –
S800S B, C, D, K 50 10 ... 125 – – – – – – – – – – – 70 70 120 120 150 150 –
(1) Disjoncteur en amont 4p (circuit en aval entre une phase et le neutre)
SN201=DS201

MCB - MCB @ 415 V
R S T R S T N R S T N R S T N R S T

S203 S203 S204 S204 S204

S203 S202 S204 S202 S202

Amont S200L S200 S200M S200P S800B S800C S800N S800S
Courbe C B, C B, C B, C B, C, D, K B, C, D, K B, C, D B, C, D, K
Icu [kA] @ 415 V 6 10 15 25 15 16 25 36 50
Aval In [A] 6 ... 40 0.5 ... 63 0.5 ... 63 0.5 ... 25 32 ... 63 32 ... 125 25 ... 125 25 ... 125 25 ... 125
S200L C 6 6 ... 40 – – – – – – 25 36 50
S200 B, C, K, Z 10 0.5 ... 63 – – 15 25 15 16 25 36 50
S200M B, C, D 15 0.5 ... 63 – – – 25 – 16 25 36 50
S200P B, C, D, K, Z 25 0.5 ... 25 – – – – – – 25 36 50
15 32 ... 63 – – – – – 16 25 36 50
S800N B, C, D 36 10 ... 125 – – – – – – – – –
S800S B, C, D, K 50 10 ... 125 – – – – – – – – –
