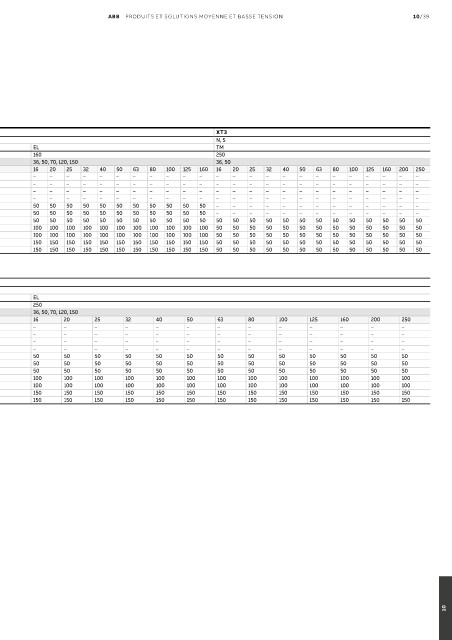

ABB PRODUITS ET SOLUTIONS MOYENNE ET BASSE TENSION 10/39

MCCB - MCS @ 415 V
Amont XT1 XT2 XT3
Version B, C, N, S, H N, S, H, L, V N, S
Relais TM TM EL TM
Iu [A] 160 160 160 250
Icu [kA] 18, 25, 36, 50, 70 36, 50, 70, 120, 150 36, 50, 70, 120, 150 36, 50
Aval Icw [kA] Icm [kA] In/Ith [A] 16 20 25 32 40 50 63 80 100 125 160 16 20 25 32 40 50 63 80 100 125 160 16 20 25 32 40 50 63 80 100 125 160 16 20 25 32 40 50 63 80 100 125 160 200 250
OT63 1.5 1.5 80 – – – – – – – – – – – 4 4 4 4 4 – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –
OT80 2.5 100 – – – – – – – – – – – 4 4 4 4 4 – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –
OT100 2.3 4 115 – – – – – – – – – – – 10 10 10 10 10 10 10 10 – – – – – – – – – – – – – – – – – – – – – – – – – – –
OT125 2.5 10 125 – – – – – – – – – – – 10 10 10 10 10 10 10 10 – – – – – – – – – – – – – – – – – – – – – – – – – – –
OT160 4 15 200 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 – – – – – – – – – – – – –
OT200 8 30 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 – – – – – – – – – – – – –
OT250 250 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50
OT315 15 65 315 70 70 70 70 70 70 70 70 70 70 70 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 50 50 50 50 50 50 50 50 50 50 50 50 50
OT400 400 70 70 70 70 70 70 70 70 70 70 70 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 50 50 50 50 50 50 50 50 50 50 50 50 50
OT630 20 80 630 70 70 70 70 70 70 70 70 70 70 70 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 50 50 50 50 50 50 50 50 50 50 50 50 50
OT800 70 70 70 70 70 70 70 70 70 70 70 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 50 50 50 50 50 50 50 50 50 50 50 50 50

Amont XT4
Version N, S, H, L, V
Relais TM EL
Iu [A] 250 250
Icu [kA] 36, 50, 70, 120, 150 36, 50, 70, 120, 150
Aval Icw [kA] Icm [kA] In/Ith [A] 16 20 25 32 40 50 63 80 100 125 160 200 250 16 20 25 32 40 50 63 80 100 125 160 200 250
OT63 1.5 1.5 80 – – – – – – – – – – – – – – – – – – – – – – – – – –
OT80 2.5 100 – – – – – – – – – – – – – – – – – – – – – – – – – –
OT100 2.3 4 115 – – – – – – – – – – – – – – – – – – – – – – – – – –
OT125 2.5 10 125 – – – – – – – – – – – – – – – – – – – – – – – – – –
OT160 4 15 200 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50
OT200 8 30 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50
OT250 250 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50
OT315 15 65 315 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100
OT400 400 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100
OT630 20 80 630 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150
OT800 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150

10
