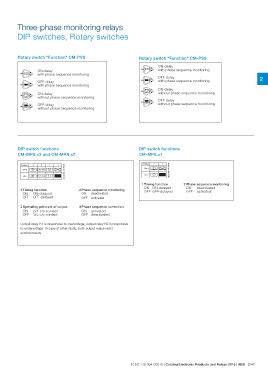

P. 107
Three-phase monitoring relays
DIP switches, Rotary switches
Rotary switch "Function" CM-PVS Rotary switch "Function" CM-PSS 2
ON-delay ON-delay
with phase sequence monitoring with phase sequence monitoring
OFF-delay OFF-delay
with phase sequence monitoring with phase sequence monitoring
ON-delay ON-delay
without phase sequence monitoring without phase sequence monitoring
OFF-delay OFF-delay
without phase sequence monitoring without phase sequence monitoring
DIP switch functions DIP switch functions
CM-MPS.x3 and CM-MPN.x2 CM-MPS.x1
Position 4 3 2 1 2CDC 252 041 F0b08 Position 2 1
2CDC 252 040 F0b08ON
ON
OFF OFF
1 Timing function 2 Phase sequence monitoring 1 Timing function 2 Phase sequence monitoring
ON ON-delayed ON deactivated ON ON-delayed ON deactivated
OFF OFF-delayed OFF OFF-delayed OFF activated
OFF activated
3 Operating principle of output 4 Phase sequence correction
ON 2x1 c/o contact ON activated
OFF 1x2 c/o contact OFF deactivated
Output relay R1 is responsive to overvoltage, output relay R2 is responsive
to undervoltage. In case of other faults, both output relays react
synchronously.
2CDC 110 004 C0210 | Catalog Electronic Products and Relays 2015 | ABB 2/40
