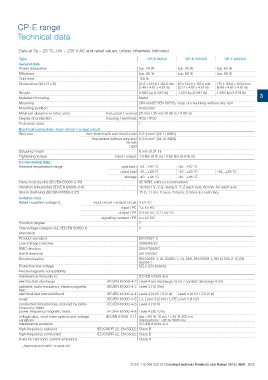

Page 225 - EPR Catalog 2015

CP-E range
Technical data

Data at Ta = 25 °C, Uin = 230 V AC and rated values, unless otherwise indicated

Type CP-E 24/5.0 CP-E 24/10.0 CP-E 24/20.0
General data
Power dissipation typ. 20 W typ. 35 W typ. 63 W
Efficiency typ. 89 % typ. 89 %
Duty time typ. 86 %
Dimensions (W x H x D) 83 x 123.6 x 123.6 mm 175 x 123.6 x 123.6 mm
100 % (3.27 x 4.87 x 4.87 in) (6.89 x 4.87 x 4.87 in)

63.2 x 123.6 x 123.6 mm
(2.49 x 4.87 x 4.87 in)

Weight 0.882 kg (1.945 lb) 1.334 kg (2.941 lb) 1.850 kg (4.079 lb) 3
Material of housing
Mounting Metal
Mounting position
Minimum distance to other units DIN rail (IEC/EN 60715), snap-on mounting without any tool
Degree of protection
Protection class horizontal

horizontal / vertical 25 mm / 25 mm (0.98 in / 0.98 in)

housing / terminals IP20 / IP20

I

Electrical connection - input circuit / output circuit

Wire size fine-strand with wire end ferrule 0.2-4 mm² (24-11 AWG)

fine-strand without wire end 0.2-6 mm² (24-10 AWG)
ferrule
rigid

Stripping length 8 mm (0.31 in)

Tightening torque input / output 1.0 Nm (9 lb.in) / 0.62 Nm (5.5 lb.in)

Environmental data operation -35…+70 °C -40…+70 °C
Ambient temperature range
rated load -35…+60 °C -40…+60 °C -40…+55 °C
Damp heat (cyclic) (IEC/EN 60068-2-30)
Vibration (sinusoidal) (IEC/EN 60068-2-6) storage -40…+85 °C -40…+85 °C
Shock (half-sine) (IEC/EN 60068-2-27)
95 %RH, without condensation

10-500 Hz, 2 G, along X, Y, Z each axis, 60 min. for each axis

15 G, 11 ms, 3 axes, 6 faces, 3 times for each face

Isolation data input circuit / output circuit 3 kV AC
Rated insulation voltage Ui input / PE 1.5 kV AC

Pollution degree output / PE 0.5 kV AC; 0.71 kV DC
Overvoltage category (UL/IEC/EN 60950-1) signalling contact / PE 0.5 kV DC
Standards
Product standard 2
Low Voltage Directive II
EMC directive
RoHS directive EN 61204-3
Electrical safety 2006/95/EC
2004/108/EC
Protective low voltage 2011/65/EC
Electromagnetic compatibility EN 60950-1, UL 60950-1, UL 508, EN 61558-1, EN 61558-2-17; EN
Interference immunity to 60204-1
electrostatic discharge SELV (EN 60950)
radiated, radio-frequency, electromagnetic
field IEC/EN 61000-6-2
electrical fast transient/burst IEC/EN 61000-4-2 Level 4 (air discharge 15 kV / contact discharge 8 kV)
surge IEC/EN 61000-4-3 Level 3 (10 V/m)
conducted disturbances, induced by radio-
frequency fields IEC/EN 61000-4-4 Level 4 (4 kV / 5 kHz) Level 4 (4 kV / 2.5 kHz)
power frequency magnetic fields IEC/EN 61000-4-5 L-L Level 3 (2 kV) / L-PE Level 4 (4 kV)
voltage dips, short interruptions and voltage IEC/EN 61000-4-6 Level 3 (10 V)
variations
Interference emission IEC/EN 61000-4-8 Level 4 (30 A/m)
high-frequency radiated IEC/EN 61000-4-11 dip: >95 % 10 ms / >30 % 500 ms
high-frequency conducted
limits for harmonic current emissions interruptions: >95 % 5000 ms
IEC/EN 61000-6-3
IEC/CISPR 22, EN 55022 Class B
IEC/CISPR 22, EN 55022 Class B
Class D

„Approvals and marks“ on page 3/4.

2CDC 110 004 C0210 | Catalog Electronic Products and Relays 2015 | ABB 3/26
