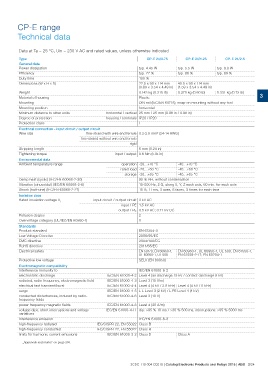

Page 223 - EPR Catalog 2015

CP-E range
Technical data

Data at Ta = 25 °C, Uin = 230 V AC and rated values, unless otherwise indicated

Type CP-E 24/0.75 CP-E 24/1.25 CP-E 24/2.5
General data
Power dissipation typ. 4.45 W typ. 5.5 W typ. 8.8 W
Efficiency typ. 86 % typ. 89 %
Duty time typ. 77 %
Dimensions (W x H x D) 40.5 x 90 x 114 mm
100 % (1.59 x 3.54 x 4.49 in)

22.5 x 90 x 114 mm
(0.89 x 3.54 x 4.49 in)

Weight 0.143 kg (0.315 lb) 0.270 kg (0.60 lb) 0.331 kg (0.73 lb) 3
Material of housing
Mounting Plastic
Mounting position
Minimum distance to other units DIN rail (IEC/EN 60715), snap-on mounting without any tool
Degree of protection
Protection class horizontal

horizontal / vertical 25 mm / 25 mm (0.98 in / 0.98 in)

housing / terminals IP20 / IP20

I

Electrical connection - input circuit / output circuit

Wire size fine-strand with wire end ferrule 0.2-2.5 mm2 (24-14 AWG)

fine-strand without wire end ferrule

rigid

Stripping length 6 mm (0.24 in)

Tightening torque input / output 0.6 Nm (5 lb.in)

Environmental data operation -20…+70 °C -40…+70 °C
Ambient temperature range
rated load -20…+60 °C -40…+60 °C
Damp heat (cyclic) (IEC/EN 60068-2-30)
Vibration (sinusoidal) (IEC/EN 60068-2-6) storage -20…+85 °C -40…+85 °C
Shock (half-sine) (IEC/EN 60068-2-27)
95 % RH, without condensation

10-500 Hz, 2 G, along X, Y, Z each axis, 60 min. for each axis

15 G, 11 ms, 3 axes, 6 faces, 3 times for each face

Isolation data input circuit / output circuit 3 kV AC
Rated insulation voltage Ui input / PE 1.5 kV AC

Pollution degree output / PE 0.5 kV AC; 0.71 kV DC
Overvoltage category (UL/IEC/EN 60950-1) 2
II

Standards EN 61204-3 EN 60950-1, UL 60950-1, UL 508, EN 61558-1,
Product standard 2006/95/EC EN 61558-2-17; EN 60204-1
Low Voltage Directive 2004/108/EC
EMC directive 2011/65/EC
RoHS directive EN 50178, EN 60950-1,
Electrical safety UL 60950-1, UL 508

Protective low voltage SELV (EN 60950)

Electromagnetic compatibility IEC/EN 61000-6-2
Interference immunity to IEC/EN 61000-4-2 Level 4 (air discharge 15 kV / contact discharge 8 kV)
IEC/EN 61000-4-3 Level 3 (10 V/m)
electrostatic discharge IEC/EN 61000-4-4 Level 4 (4 kV / 2.5 kHz) Level 4 (4 kV / 5 kHz)
IEC/EN 61000-4-5 L-L Level 3 (2 kV) / L-PE Level 4 (4 kV)
radiated, radio-frequency, electromagnetic field IEC/EN 61000-4-6 Level 3 (10 V)

electrical fast transient/burst

surge

conducted disturbances, induced by radio-
frequency fields

power frequency magnetic fields IEC/EN 61000-4-8 Level 4 (30 A/m)
IEC/EN 61000-4-11 dip: >95 % 10 ms / >30 % 500 ms, interruptions: >95 % 5000 ms
voltage dips, short interruptions and voltage
variations

Interference emission IEC/EN 61000-6-3 Class A
high-frequency radiated IEC/CISPR 22, EN 55022 Class B
high-frequency conducted IEC/CISPR 22, EN 55022 Class B
limits for harmonic current emissions
IEC/EN 61000-3-2 Class D

„Approvals and marks“ on page 3/4.

2CDC 110 004 C0210 | Catalog Electronic Products and Relays 2015 | ABB 3/24
